The novel llama-human chimeric antibody has potent effect in lowering LDL-c levels in hPCSK9 transgenic rats

Abstract

Background

The advent of proprotein convertase subtilisin/kexin type 9 (PCSK9)–inhibiting drugs have provided an effective, but extremely expensive treatment for the management of low density lipoprotein (LDL). Our aim was to explore a cost-effective application of camelid anti-PCSK9 single domain antibodies (sdAbs), which are high variable regions of the camelid heavy chain antibodies (VHHs), as a human PCSK9 (hPCSK9) inhibitor. One female llama was immunized with hPCSK9. Screening of high affinity anti-PCSK9 VHHs was carried out based on surface plasmon resonance (SPR) technology. We reported a lysate kinetic analysis method improving the screening efficiency. To increase the serum half-life and targeting properties, the constant region fragment of the human immunoglobulin gamma sub-type 4 (IgG4 Fc) was incorporated to form a novel llama-human chimeric molecule (VHH-hFc).

Results

The PCSK9 inhibiting effects of the VHH proteins were analyzed in two human liver hepatocellular cells (HepG2 and Huh7) and in the hPCSK9 transgenic Sprague–Dawley (SD) rat model. The hPCSK9 antagonistic potency of the bivalent VHH-hFc exceeded the monovalent VHH (P < 0.001) in hepatocarcinoma cells. Furthermore, the llama-human chimeric VHH-Fc protein had a similar reduction (~ 40%) of the LDL-c and total cholesterol when compared to the approved evolocumab in transgenic SD rat model, but with low cost. More surprisingly, the chimeric heavy chain antibodies could be persevered for 3 months at room temperature with little loss of the affinity.

Conclusions

Due to the high yield and low cost of Pichia pastoris, lipid-lowering effect and strong stability, the llama-human chimeric antibody (VHH-Fc) offers a potent therapeutic candidate for the control of the serum lipid level.

Background

High levels of low density lipoprotein cholesterol (LDL-c) can increase the risk of cardiovascular diseases (CVD) which are associated with devastating sequelae like stroke and hemiplegia [6]. Statins, also known as β-hydroxy-β-methylglutaryl-CoA reductase inhibitors, can reduce LDL-c by ~ 25% and lower CVD risk by ~ 20%. Unfortunately, statin-resistant patients often have to opt for treatment disruption [27]. High risk patients, often with familial hypercholesterolemia, are unable to reach acceptable LDL-c levels (~ 100 mg/dL) relying on statins alone [6]. Studies have also reported that the use of statins can increase the progression of vascular calcification and skeletal muscle injury and the levels of the proprotein convertase subtilisin/kexin type 9 (PCSK9) [17, 21, 26, 31]. Due to this, the need for other molecules that can reduce LDL-c levels are required.

In 2003, human genetics studies reported the ninth and last member of the PCSK family [28]. It demonstrated that the PCSK9 gene was the third locus of autosomal dominant hypercholesterolemia, following the LDL receptor (LDLR) and apolipoprotein B genes [1]. PCSK9 protein plays a vital role in cholesterol homeostasis by binding to the LDLR. High level PCSK9 competitively binds LDLR with LDL-c, which would cause disorder of LDL-c metabolism (Additional file 1: Fig. S1). PCSK9 regulates plasma LDL-c levels by regulating the degradation of LDLR [20]. It is a member of the proteinase K subfamily of subtilisin-related serine endoproteases. Like other members of this family, the PCSK9 protein has a signal sequence, followed by a prodomain, and a catalytic domain [16] (Additional file 2: Fig. S2). The crystal structure of PCSK9 could be acquired by the accession number: PDB 2QTW at the website (https://www.ebi.ac.uk/pdbe/entry/pdb/2QTW).

Apart from statins, anti-PCSK9 monoclonal antibody is also used for lowering LDL-c. Evolocumab and alirocumab are two PCSK9 inhibitors that were approved by US FDA in 2015 [25]. However, not all patients can afford these expensive drugs (≥ 5850$ every year), especially in less-developed areas [4]. Camelid single domain antibody (sdAb) is essentially the high variable region (VHH) of the heavy chain antibody (HcAb). It is also known as nanobody because of its size at the nanometer scale and may be an attractive alternative to the immunoglobulin gamma (IgG). It has many merits over IgG. For instance, its molecular weight is only ~ 15 kDa and it can penetrate the blood brain barrier. And it can be produced with low cost and high yield and stability in not only yeast, but bacteria as well [2, 19]. Recently, the first nanobody drug, Caplacizumab, was approved by the European Commission. It is a bivalent VHH designed for the treatment of thrombotic thrombocytopenic purpura and thrombosis [24]. In this study, the monovalent represents the single VHH. The bivalent VHH represents double VHH dimerized by VHH-Fc. Fc represents the constant region fragment of the human immunoglobulin gamma sub-type 4.

In our study, we aim to explore the therapeutic application of camelid anti-PCSK9 VHH proteins on lipid-lowering effect. Following llama immunization of full-length hPCSK9, we screened for sdAbs that have high affinity to hPCSK9. The experimental flow graph was shown in the Fig. 1. The llama-human chimeric antibody we designed, could lower LDL-c by inhibiting PCSK9 in hepatoma carcinoma cells and hyperlipidemic animal models.

Fig. 1
figure1

Schematic diagram of the whole experimental workflow. The whole experimental workflow consists of the PCSK9 immunization, blood sampling, VHH library construction, E. coli transformation, phage-display panning, Sanger sequencing, VHHs protein expression, bivalent VHH design, affinity test, LDL-uptake, and pharmacodynamics assay

Results

Immunization and library construction

After four rounds of human PCSK9 (hPCSK9) antigen stimulations, the serological enzyme-linked immunosorbent assay (ELISA) was performed with coating (+) and no coating (−) of 100 ng hPCSK9 antigen/well. The results in Additional file 3: Fig. S3 showed the titer of the polyclonal antibody specific to the hPCSK9 was 1: 1,562,500 [the OD450 ratio of post-immune serum/pre-immune serum ≥ 2.1 is recognized serology positive (#)]. The antibody library was then constructed and the library size was measured by counting colonies after the competent TG1 E. coli transformation and tenfold dilution. The hPCSK9 immune library size was predicted to be about 1 × 1010.

Phage display and kinetics screening

After the fourth bio-panning, the phages produced by 22 individual clones were selected. Their supernatants of TES lysate were tested for their binding abilities to the hPCSK9. As shown in Fig. 2, the scatter plot of the relative stability and binding values illustrate the kinetics screening result, among which four sdAbs (VHH-B11, H12, A6 and G8) had apparent high binding and stability values (> 100 RU). Specifically, VHH-B11 has the highest binding (409.3 RU) and stability (472.3 RU) values. VHH-H12 has the second highest binding (272.5 RU) and stability (373.3 RU) values. VHH-A6 binding and stability values are 166.4 RU and 238.6 RU. The values of VHH-G8 are 132.5 RU and 160.1 RU. It suggests that VHH-B11 is probably the best candidate with the highest affinity for hPCSK9. Sanger sequencing verified that they had different VHH sequences (shown in the Additional file 4: Table S1). They have different IGHV and IGHJ genes usages when aligned to the Vicugna pacos germline gene by IMGT/V-QUEST (http://www.imgt.org/IMGT_vquest/input).

Fig. 2
figure2

The scatter plot of the lysate kinetics screening. The scatter plot represents the results of the lysate kinetics screening. The horizontal axis represents the relative response unit of the stability. The vertical axis represents the relative response unit of the binding. Each dot represents one sample with the tag name (e.g. B11, H12, P-1 and so on). ‘TES’ represents the 55% TES buffer (0.2 M Tris–HCl pH 8.0, 0.5 mM EDTA, 0.5 M sucrose), which was system buffer and taken as the blank sample

VHH expression and protein-base assays

After screening, expression was induced for these four recombinant E. coli by 0.1 M isopropyl-β-d-thiogalactoside (IPTG). The affinity of four VHH proteins was measured by the surface plasmon resonance (SPR), as shown in the Fig. 3a–d and Table 1. We could see that each VHH had its own performance. SPR test yielded the best affinity for the B11/hPCSK9 interaction at 8.688 nM. H12/hPCSK9 interaction also had a good affinity at 703.7 nM. A6 and G8 showed a quick dissociation after binding to the hPCSK9, with the affinity at ~ 29 nM and ~ 73 nM. Therefore, B11 was selected for in-depth study.

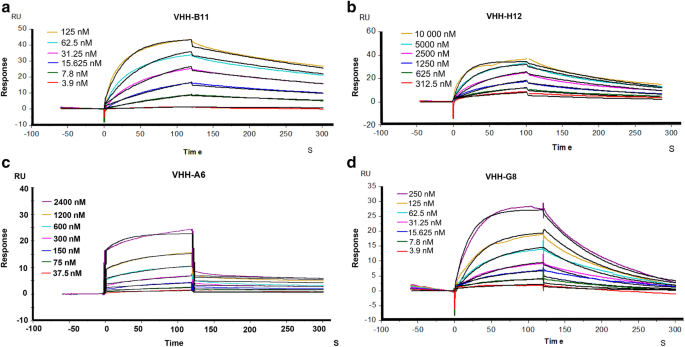

Fig. 3
figure3

The affinity test for the four VHHs/hPCSK9 interaction. A 6 or 7-points, double fold dilution of these VHH-based proteins were injected to bind with the hPCSK9. Each colored line represents one concentration of the VHH proteins. The black lines represent the automatic fitting curves by the built-in evaluation software. The horizontal axis represents the timeline, and the vertical axis represents the relative response unit of the VHH/hPCSK9 interaction. The VHH protein injection time point was automatically set as 0 s by the built-in evaluation software

Table 1 The affinities of the antibodies with the hPCSK9

The epitope binning assay of the VHH-B11 was performed against the approved evolocumab by SPR. The curve in Fig. 4a consists of four processes: baseline; capture evolocumab; injecting PCSK9 (binding and dissociation); injecting VHH-B11 (binding and dissociation). It shows that after capturing evolocumab and injecting PCSK9, the evolocumab-specific epitopes on hPCSK9 were all occupied by itself and the curve reached a plateau (~ 1350RU, a stable level). Then injecting VHH-B11 still promoted to a new level (~ 1420RU). It suggests that VHH-B11 has different binding hPCSK9 epitopes with the evolocumab. From Fig. 4b, the dual antibody sandwich ELISA result also proves this fact and the method is illustrated on the bottom-right.

Fig. 4
figure4

The epitope binning assay by SPR and ELISA. a The epitope binning assay of the VHH-B11 was performed against the approved evolocumab by SPR (Protein A chip). The horizontal axis represents the timeline. The vertical axis represents the relative response unit. The curve consists of four processes: baseline; capture evolocumab; injecting PCSK9 (binding and dissociation); injecting VHH-B11 (binding and dissociation). b The dual antibody sandwich ELISA method between VHH-B11 and the approved evolocumab (coated on the plate, as shown in the schematic diagram). The horizontal axis represents different dilution concentrations of the VHH-B11. The vertical axis represents the OD450 value

Bivalency design and affinity test

To increase the molecular weight, stability and half-life period of the VHH binder, the bivalency structure was designed. The human IgG4 Fc was fused to the VHH-B11 to form the llama-human chimeric bivalency (B11-Fc). It was expressed in Pichia pastoris X33. From the Fig. 5a–c, electrophoresis results show that the B11 (17 kDa) and B11-Fc (40 kDa reduced and76 kDa non-reduced) were correctly expressed.

Fig. 5
figure5

The SDS-PAGE gel and the affinity tests. ac the SDS-PAGE gel of the VHH-B11, and the bivalency B11-Fc. M1, M2 and M3: the protein markers (Fermentas, USA). Lane1: VHH-B11, 17 kDa Lane2: B11-Fc, 76 kDa non-reduced gel; Lane3: B11-Fc, 40 kDa reduced gel. d The affinity test of the bivalency B11-Fc. Each colored line represents one antibody concentration. The black lines represent the automatic fitting curves by the built-in evaluation software. The binding and dissociation time was set at 180 s and 240 s, respectively, and the protein injection time point was automatically set as 0 s by the built-in evaluation software

The affinity was also tested by the SPR (Fig. 5d). The B11-Fc proteins had high affinity with the hPCSK9 antigen at 0.6879 nM (Table 1). The engineered bivalent B11-Fc was up to ~ 12 times more potent than VHH-B11 (8.688 nM) based on the affinity.

LDL-uptake test

LDL binds to the LDLR on the cell surface and delivers cholesterol via receptor-mediated endocytosis. The PCSK9 competitively bind the LDLR. The labeled LDL complexes (LDL-BODIPY) were used for studying the Abs’ inhibitory effect on hPCSK9. The relative fluorescence unit (RFU) represents the LDL-c endocytosis. The stronger inhibitory effect the VHH-based Ab has, the stronger fluorescence signal it produces. As seen in the left of Fig. 6a, b, the addition of hPCSK9 alone could lead to a ~ 60% fluorescence decrease in both human hepatocellular cells (HepG2 and Huh7), which is consistent with previous reports [9, 34]. Each antibody showed different hPCSK9-inhibiting effects in a concentration-dependent pattern. The formula for the inhibition rate is as follows:

$${\text{The}}\;{\text{PCSK9}}\;{\text{inhibition}}\;{\text{rate}}\;(\% ) = {{{\text{RFU}}\left[ {\left( {{\text{no}}\;{\text{PCSK9}}\;{\text{group}}} \right) - \left( {{\text{adding}}\;{\text{Ab}}\;{\text{group}}} \right)} \right]} \mathord{\left/ {\vphantom {{{\text{RFU}}\left[ {\left( {{\text{no}}\;{\text{PCSK9}}\;{\text{group}}} \right) - \left( {{\text{adding}}\;{\text{Ab}}\;{\text{group}}} \right)} \right]} {{\text{RFU}}\left[ {\left( {{\text{no}}\;{\text{PCSK9}}\;{\text{group}}} \right) - \left( {{\text{PCSK9}}\;{\text{alone}}\;{\text{group}}} \right)} \right]}}} \right. \kern-0pt} {{\text{RFU}}\left[ {\left( {{\text{no}}\;{\text{PCSK9}}\;{\text{group}}} \right) - \left( {{\text{PCSK9}}\;{\text{alone}}\;{\text{group}}} \right)} \right]}}*100\% .$$
Fig. 6
figure6

The LDL-uptake test in HepG2 (a) and Huh7 (b) cell models. The horizontal axis represents four different groups. The vertical axis represents the relative fluorescence unit (RFU) of the intracellular LDL, which reflects the levels of the LDL-c uptake and functional LDLR at the cell surface. The left two columns were respectively taken as the blank (full white) and negative (full black) control groups. The right six columns represent the other two groups of the monovalent VHH-B11, and the bivalency B11-Fc respectively in three doses (0.375, 0.750 and 1.500 μM). LDL-c uptake percent was given on the right of the histogram (←). ‘(+)’ and ‘(−)’refers to the addition and absence of hPCSK9 or VHH derivative antibodies, respectively. P < 0.05 was considered as statistically significant, compared with the negative control group (*P < 0.05, **P < 0.01, ***P < 0.001)

As expected, the bivalency B11-Fc, showed a stronger inhibiting appearance than the monovalency VHH-B11 in both HepG2 and Huh7 cells. In HepG2 cells, on addition of 1.5 μM bivalency antibody, the hPCSK9-inhibiting rate reached ~ 85%. However, only 0.75 μM bivalency antibody (B11-Fc) could completely ~ 100% inhibit the hPCSK9 in Huh7 cells.

Pharmacodynamics

To further verify the effect of the B11-Fc on lowering serum lipids in vivo, the hPCSK9 transgenic (Tg+) rat model was produced and induced by a high-fat diet. Before the formal experiment, we did a pre-experiment to probe an optimal dosage (20 mg/kg) according to the previous study [33]. In the formal experiment, the dual injections were on day 0 and day 7. Rats were bled on days 0, 5, 11, 17 and 20 (then sacrificed). As seen in Fig. 7, compared with the SD_normal diet rats, high fat diet elicited a significant rise in the two types of the serum lipid for the SD_high fat_Evolo group rats (purple vs blue lines, P < 0.01) in the all 20 days. As expected, injecting evolocumab had no effect for the normal SD rats fed with high fat diet, so their CHOL and LDL-c levels on days 20 were taken as 100% reduction. On day 0, the three Tg+ groups rats fed with the high fat diet had a higher CHOL (~ 8.2 mmol/L) and LDL-c (~ 7.2 mmol/L) levels than that of the other three control groups (P < 0.001). On day 5, the first injecting of B11-Fc protein elicited a downward trend (~ 3.2 mmol/L CHOL or LDL-c, gray lines) for the Tg+_high fat_B11-Fc group. For first injecting the evolocumab, there was also a downward trend (~ 2.4 mmol/L CHOL or LDL-c, red lines) in the Tg+_high fat_Evolo group rats. Compared with the serum lipid level of the SD_high fat_Evolo group (blue lines), they were such declines that there was no significant difference between each group (P > 0.05, ns). Between day 5 and day 20, for the Tg+_high fat_Evolo group rats (red lines), two type of the serum lipid remain at the similar levels. As to the Tg+_high fat_B11-Fc group (gray lines), there were slight upward trends. This may be the results of the effects of the shorter half-period of the B11-Fc than the whole IgG. However, on day 20, the B11-Fc group had similar CHOL level with that of the Tg+_high fat_Evolo group (~ 6.08 vs ~ 5.83 mmol/L, ns). Besides, it was found that the LDL-c situations were similar (B11-Fc vs evolocumab group: 4.9 vs 4.5 mmol/L, ns). We also observed that Tg+ rats injected with B11-Fc and evolocumab had significantly lower CHOL levels (~ 6.08 and ~ 5.83 mmol/L) than that of the Tg+_high fat_PBS group (~ 7.5 mmol/L) (P < 0.05). As to LDL-c, the Tg+ rats injected with B11-Fc and evolocumab had significantly lower levels (~ 4.9 and ~ 4.5 mmol/L) than that of the Tg+_high fat_PBS group (~ 6.01 mmol/L) (P < 0.05). On the whole, compared with that of the SD_high fat_Evolo group (100% reduction), the B11-Fc elicited a considerable ~ 40% reduction (gray line vs blue line, P < 0.05) for the Tg+_high diet_B11-Fc group rats, whether on CHOL levels or on LDL-c levels. The situation of the Tg+_high diet_Evolo group was similar. The evolocumab also elicited a ~ 45% reduction on serum lipid levels, but the differences between the Tg+_high fat_B11-Fc and Evolo groups was not statistically significant (gray line vs red line, P > 0.05, ns).

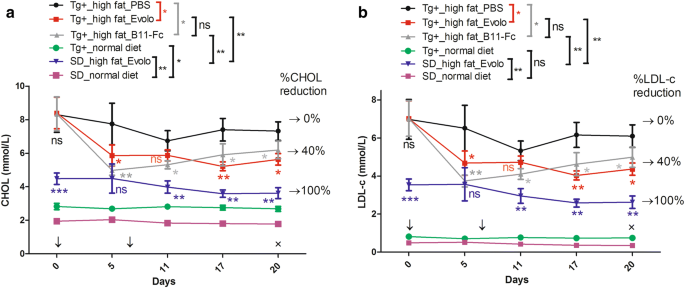

Fig. 7
figure7

The pharmacodynamics assay in the hPCSK9 transgenic rat model. The horizontal axis represents the timeline (days post the first treatment). The vertical axis represents the CHOL (A), LDL-c (B) levels (mmol/L) and their percent change (%) was given on the right (←). ‘SD’ was the normal Sprague Dawley rat. ‘Tg+’ represents the hPCSK9 transgenic SD rat; ‘high fat’ refers to the feeding of the high fat diet to the rat. ‘Evolo’ represents the rat treated with the evolocumab. ‘PBS’ represents the rat injected with the PBS buffer. ‘↓’ represents the two treatments on day 0 and day 7. ‘×’ represents the sacrifice of the animals on day 20. P < 0.05 was considered as statistically significant, compared with the PBS group (*P < 0.05, **P < 0.01; ns: not significant)

Stability evaluation

Furthermore, we evaluated the B11-Fc’s storage stability in 1 × PBS buffer at room temperature (~ 25 °C) by the affinity determination (Table 1 and Additional file 5: Fig. S4). From Table 1 and Additional file 5: Fig. S4A–E, at the ends of 1st, 4th, 7th, 10th, and 13th weeks, the affinities of the B11-Fc with the hPCSK9 were all detected by SPR. It is observed that they had similar affinity curves and were all at 0.1 nM scale. Even after 13 weeks’ storage, the B11-Fc still had 0.6673 nM affinity for the interaction with the hPCSK9. It suggested that the B11-Fc antibody has strong storage stability.

The temperature range of the human body is 35–39 ℃. We also evaluated the effect of reaction temperature on affinity. Compared with the affinity 0.6879 nM at 25 °C (Fig. 5),the affinity at 37 °C was also at 0.1 nM scale (data not shown). More intriguing is even at 40 °C reaction temperatures, the B11-Fc still had 0.1228 nM affinity for the interaction with the hPCSK9 antigen (as shown in Table 1 and Additional file 5: Fig. S4F). Their affinities difference is no more than six folds. All the results suggested that the B11-Fc antibody has strong stability. It would greatly facilitate the storage and transportation at room temperature.

Discussion

In this study, a large phage immune library, about 1010, was constructed after immunizing a llama with the hPCSK9. From this VHH pool, one high specific sdAb (VHH-B11) with high affinity for hPCSK9 interaction was screened. Furthermore, a VHH-Fc bivalent antibody was designed which exhibited inhibition of the human PCSK9 in hepatocarcinoma cell line as well as in transgenic rats.

In the mAb screening stage, it always produced many candidates with the almost the same OD450 values. It would be very time consuming that all the VHH proteins were purified and affinity was determined. To improve the screening efficiency, based on the traditional phage display, kinetics analysis by the SPR was carried out by direct using the supernatants. This analysis gives a clear visualization between the binding and stability values using a scatter plot (Fig. 2). The VHH clone with high binding level represents a good antibody candidate [35]. And then we only need to express and purify the antibodies with high binding values. Multiple concentrations of the purified antibodies are required to obtain accurate affinity (Fig. 3).

Previous studies reported that sdAb has a short half-life period in vivo [5, 7, 15]. To improve it, we designed the Fc-fused bivalent (B11-Fc) [14], which had ~ 12 times higher affinity and better LDLR degradation inhibiting ratios than monovalent VHH (Table 1). At first the tandem bivalent (e.g. VHH–VHH), as a frequent bivalent format, is taken into account. It can also lead to an increase in affinity. However, previous study, showed the Fc-fused VHH protein (75 kDa) has a longer half-life period (~ 15 days) than that (~ 60 min) of the tandem bivalent (35 kDa), also including monovalent (~ 30 min) [7, 27]. It suggests that it would increase biological half-life period by fusion with the Fc. The results of the pharmacodynamics in Fig. 7 seems to suggests that the antibody with long half-life period has durable effect. Besides, for the VHH-Fc protein, it could further lengthen the half-life period by some amino acid mutations in the Fc region [29]. Another alternative would be to fuse it with the anti-human serum albumin VHH [30]. The Fc region also plays an important role in antibody dependent cell-mediated cytotoxicity, further enhancing B11-Fc properties in comparison to the non-IgG like formats [22]. All these indicates that Fc fusion is a simple and effective pathway for VHH engineering modification.

Furthermore, camelidae heavy chain antibody (B11-Fc)’s molecular weight is ~ 76 kDa and the productivity is better than the whole IgG (150 kDa) [3, 8, 11]. It can be expressed in yeast with low cost, but with high yield (2 to 5 g/L) after five days’ fermentation. In contrast, it needs to take 10–15 days for the mammalian cell expression system to reach this expression level [10, 12]. It is estimated that the cost of yeast expressed proteins is 23 €/g lower than that of mammalian cells (96 vs 119 €/g antibody Fab protein) [18].

As to the LDL-uptake assay, similar studies have shown that evolocumab exhibited a similar > 80% inhibition between 0.1 and 0.3 μM, and a 100% inhibition at 1 μM in HepG2 cells [34]. However, in this study, 0.75 μM bivalency antibody (B11-Fc) could completely ~ 100% inhibit the hPCSK9 in Huh7 cells. It may be caused by that the different sensitivities to the protein drugs in both cell types. On the whole, the Fc-fused VHH protein (B11-Fc) had a good pharmaceutical effect on two human hepatoma cell lines.

It is worthy to note that in pharmacodynamics assay, the Tg+_high fat_PBS group rats had a serum lipid decrease on day 11. This may be due to by some instability of the high fat fed rat model on these days. However, the serum lipid level gradually recovered in the next 9 days. Besides, this phenomenon was not observed in the other control groups.

In previous reports, the researchers discovered of the cryptic peptide-binding sites on PCSK9 and they can be used for the design of small molecular antagonists [23, 36]. In most instances, small molecular drugs have very short half-life period and major side effects. However, it is important that these novel binding sites can also be used for the antibody discovery.

Besides, the B11-Fc has strong affinity stability at room temperature (Table 1 and Additional file 3: Fig. S3). However, the approved drugs must store and transport at low temperature (2–8 °C). All this greatly reduced the manufacturing, storage and transportation cost. Therefore, we had designed a llama-human chimeric antibody which could act as a potential therapeutic agent that reduces LDL-c and total cholesterol. Further studies to confirm its potential role as a therapeutic agent are required.

Conclusions

In conclusion, we discovered and designed a novel lama-human chimeric antibody and verified its function by in vitro and in vivo assays. Due to the high yield and low cost of Pichia pastoris, lipid-lowering effect and strong stability, the llama-human chimeric antibody (VHH-Fc) offers a potent therapeutic candidate for the control of the serum lipid level.

Materials and methods

Animal

One female llama (three years of age), raised in LvMeng Co., Ltd (Shenzhen, Guangdong, China) was used in this study. 500 μg emulsified hPCSK9 antigen (Sinobiological, China, Cat# 29698-H08H) with adjuvant was subcutaneously injected four times at monthly intervals. The isopyknic complete Freund’s adjuvant (500 μg, Sigma-Aldrich, USA, Cat# F5881-10ML) was used for the primary immunization, and incomplete Freund’s adjuvant (500 μg, Sigma-Aldrich, USA, Cat# F5506-10ML) was used for the other three immunizations. One month after the final immunization, 50 mL peripheral blood was collected, from which the mononuclear cells were isolated by adding ficoll-paque plus (GE Healthcare, USA, Cat# 45-001-749) for density gradient centrifugation. Forty-eight 4-weeks-old SPF male Sprague–Dawley (SD) rats were fed in the GemPharmatech Co., Ltd (Nanjing, Jiangsu, China) for pharmacodynamic studies.

Phage display and kinetic screening

The total RNA was extracted using an RNEasy kit (Qiagen, Hilden, Germany, Cat# 74104), according to the manufacturer’s protocol. The immune library for phage display was then constructed and was found to be similar to previous reports [32]. Briefly, using hPCSK9-coated 96-well plates, four rounds of bio-panning were performed, with each round consisting of four steps - phage binding to the hPCSK9, washing, phage elution, and amplification. In the last step, the phages produced by panned individual clones were tested for their binding ability to the hPCSK9. It is a simple and convenient method to screen for clones before antibody purification. However, the best specific VHH clones cannot be correctly identified only by ELISA. To resolve this issue, we performed kinetic screening of the lysates by SPR (Biacore T200, GE Healthcare, USA) [35]. Due to low VHH levels in the lysate, high level antigen coupling is required. Therefore, hPCSK9-his tagged antigen (Sinobiological, China, Cat# 29698-H08H, 20 μg/mL in 10 mM sodium acetate (pH5.0, GE Healthcare, USA, Cat# BR-1003-51)) was captured on a CM5 chip (GE Healthcare, USA, Cat# 29104988) for 420 s. Finally, an average of 18000 RU of captured hPCSK9 antigen was immobilized on the flow cell 2, with flow cell 1 maintained as blank. The immobilization step was carried out at a flow rate of 30 μL/min in 1× PBS buffer. After lysis by TES buffer (0.2 M Tris–HCl pH 8.0, 0.5 mM EDTA, 0.5 M sucrose), the relative binding and stability values of each clone was measured by the SPR when these 22 supernatants flowed over the hPCSK9-coated CM5 chip. The result plot could be automatically generated by the built-in evaluation software between the stability value and the binding value. These values are positively correlated with the affinity for hPCSK9. The off rate and kinetics binding experiments were performed at 25 °C. The binding and dissociation time was set at 120 s and 140 s, respectively. The time points of the binding (at ~ 120 s) and stability values (at ~ 135 s) are system default settings. Glycine (pH 2.0, GE Healthcare, USA, Cat# BR-1003-55) was used as the regeneration buffer.

Protein expression, purification and affinity determination

At first, VHHs’ expression was induced for these four recombinant E. coli by 0.1 M IPTG (Sangon Biotech, China, Cat# A600168-0025). To improve the expression and purification efficiency, the recombinant pPICZ-α vectors were constructed, transfected and integrated into the genome of the Pichia pastoris X33 (yeast) to express the VHH related proteins. Recombinant secretion expression was induced by adding 0.5% methanol every 24 h and shaking at 220 rpm at 30 °C for 5 days. The supernatants of the culture medium were harvested and assayed for recombinant protein expression. The supernatant was filtered with 0.22 μm PES filter membrane (Millipore, USA, Cat# GPWP02500). The 6his-tagged proteins were purified with the Histrap FF column (GE Healthcare, USA, Cat# 17-5319-01), and Fc-fused proteins were purified with the Protein A column (GE Healthcare, USA, Cat# 17040201).

SPR technology was used to detect the kinetics binding and dissociation process of the VHH proteins. Briefly, hPCSK9-his tagged antigen (20 μg/mL, in 10 mM sodium acetate, pH5.0. Sinobiological, China) was captured on the flow cell 4 of the CM5 chip (GE Healthcare, USA, Cat# 29104988) at ~ 800 response unit (RU), with flow cell 3 maintained as blank. All the binding assays were performed at 25 °C on the Biacore T200 instrument (GE Healthcare, USA). The binding and dissociation time was set at 120 s and 180 s respectively. A 6 or 7-points, double fold dilution of different molar concentrations of these VHH-based proteins were injected and the sensorgrams were globally fitted with a floating Rmax using the built-in evaluation software. The regeneration buffer was glycine (pH 2.0, GE Healthcare, USA, Cat# BR-1003-55). The calculation formula of the affinity (KD) is as followings: KD (nM) = koff (1/s)/kon (1/Ms). koff is the dissociation constant, and kon is the binding constant.

Epitope binning test

First, the epitope binning assay was performed by the SPR at 25 °C. Briefly, the evolocumab (Amgen, USA, CAS# 1256937-27-5) was diluted in PBS (1 μg/mL) and captured on the flow cell 2 of the Protein A chip (GE healthcare, Cat# 29127555) at ~ 270RU, with flow cell 1 as blank. Next, the hPCSK9-his tagged antigen (5 μg/mL, in PBS) was injected into the dual flow cells as the Sample 1 for 90 s. All the evolocumab-specific epitopes on the hPCSK9 were occupied by the evolocumab and the Sample 1 (PCSK9-his)’s curve would reach a plateau. Then the VHH-6his antibodies (5 μg/mL, in PBS) were injected into the dual flow cells as the Sample 2 for 60 s. If these VHHs had different PCSK9 epitopes with evolocumab, the curve would continue to rise some response unit. If not, the curve would stay at a stable RU level. The dissociation time of the Sample 1/2 were set as 120 s. Similarly, the pH2.0 glycine (GE Healthcare, USA, Cat# BR-1003-55) was take as the regeneration buffer.

Furthermore, ELISA was also performed to verify the SPR results. The evolocumab (100 ng/well, Amgen, USA, CAS# 1256937-27-5) was coated on the ELISA plate overnight at 4 °C. After washing and 3% BSA (Sangon Biotech, China, Cat# A600332-0005) blocking, the hPCSK9-Fc tagged antigen (1 μg, Sinobiological, China, Cat# 29698-H05H) was added for one hour at 25 °C.After washing, the serial dilution VHH was added to bind the other epitopes on the hPCSK9 protein for one hour at 25 °C. Then horse radish peroxidase tagged anti-his antibody (1:5000 dilution, Abcam, UK, Cat# ab184607) was taken as the second antibody for one hour at 25 °C. After washing, 100 μL tetramethylbenzidine was added and the plate was incubated in the dark at 25 °C for 10 min (Abcam, UK, Cat# ab171522). The reaction was stopped by 50 μL 1 M sulfuric acid. The OD450 absorbance was measured by a microplate reader (Epoch, BioTek, USA).

LDL-uptake assay

Huh7 and HepG2 cells were plated at a density of 5 × 105 cells/well in 96-well plates (BIOLEGEND, USA, Cat# 423501) in Dulbecco’s modified eagle medium (DMEM, GIBCO, USA, Cat#11965084) supplemented with 10% fetal bovine serum (FBS, GIBCO, USA, 10099141). After 24 h, five groups were designed. The first group of cells were taken as the blank control (no addition of hPCSK9 and sdAbs). The second group of cells were taken as the negative control (addition of 0.080 μM hPCSK9 alone). 0.080 μM purified hPCSK9 and the other three groups of sdAb-based proteins (in three doses, 0.375 μM, 0.750 μM and 1.500 μM) were pre-incubated at 37 °C in the same medium and added onto the cells (three wells/condition). After 1 h at 37 °C, 10 μL of LDL-BODIPY (Invitrogen, USA, Cat# L3483) was added to the cell medium (6 μg/mL), and cells were further incubated for 3 h. After three washes in dulbecco’s phosphate buffered saline (DPBS, Gibco, USA, Cat# C14190500BT), plates were scanned on a Tecan Infinite M1000 PRO (Tecan, Switzerland). LDL-uptake level was measured in each well as an average fluorescence intensity.

Pharmacodynamics

Pharmacodynamics was performed in the GemPharmatech Co., Ltd (Nanjing, Jiangsu, China). Briefly, the rats were divided into six groups (eight rats in each), of which there were four hPCSK9 transgenic rat (Tg+ rat) groups and two normal control groups. The hPCSK9 transgenic rats were produced through genomic random insertions by the injection of the hPCSK9 gene into the fertilized eggs according to previous reports [13, 16, 30]. The successful transgenic rats were screened by PCR verification for the presence of the hPCSK9 genes. These Tg+ rats were induced by a high-fat diet for 8 weeks. Of the four Tg+ group rats, three groups were, respectively injected in the tail vein with PBS, evolocumab, and B11-Fc (20 mg/kg). The remaining hPCSK9 Tg+ group rats were fed with the normal diets. The group IDs as assigned were, Tg+_high fat_PBS, Tg+_high fat_Evolo, Tg+_high fat_B11-Fc and Tg+_normal diet. Two normal control groups were maintained. The first group was fed with the normal diets (ID: SD_normal diet group). The second group was fed with the high-fat diet and injected with the evolocumab (ID: SD_high fat_Evolo). The rats were injected at day 0 and 7 and sacrificed at day 20. Blood samples were collected and total cholesterol (CHOL) and liver LDL-c levels were determined by an automatic biochemical analyzer (Hitachi 7020, Japan).

Stability test

Furthermore, we evaluated the storage stability and thermal stability of the B11-Fc antibody for its medicinal potentials by the affinity determination. Briefly, the freshly prepared B11-Fc protein (1 mg/mL in 1 × PBS) was divided into six groups. The first five groups were used for the storage stability evaluation. After the preservation at room temperature (~ 25 °C), the storage stability was studied by comparing their affinities at several points in time (at the end of 1st, 4th, 7th, 10th, and 13th weeks). The other group was used directly for the thermal reaction stability evaluation at 40 °C by setting the reaction temperature of the Biacore T200 (GE Healthcare, USA). The capture method was used to determinate the affinity based on Protein A chip (GE healthcare, Cat# 29127555). The B11-Fc protein (1 μg/mL, in PBS) was captured on the flow cell 2 at ~ 250RU, with flow cell 1 as blank. Next, the hPCSK9 antigen (100 nM, doubling dilution, Sinobiological, China, Cat# 29698-H08H) was injected into the dual flow cells for binding 180 s or 240 s. Similarly, the pH2.0 glycine (GE Healthcare, USA, Cat# BR-1003-55) was take as the regeneration buffer.

Statistics

All the statistical analysis was performed with the software Graph-Pad PRISM 5. All the data represented is an average value of at least three independent experiments (± S. E). Two-tailed Student’s t-test was performed to assess the statistical significance of the data sets. P < 0.05 was considered as statistically significant (*P < 0.05, **P < 0.01, ***P < 0.001, ns: not significant).

Availability of data and materials

Not applicable.

Abbreviations

CHOL:

Total cholesterol

CVD:

Cardiovascular diseases

D-PBS:

Dulbecco’s phosphate buffered saline

DMEM:

Dulbecco’s modified eagle medium

ELISA:

Enzyme-linked immunosorbent assay

Fc:

The constant region fragment of the human immunoglobulin gamma

hPCSK9:

Human proprotein convertase subtilisin/kexin type 9

HepG2:

Human hepatoma cells G2

Huh7:

Human hepatoma cells huh7

IgG:

Immunoglobulin gamma

IPTG:

Isopropyl-β-d-thiogalactoside

LDL:

Low density lipoprotein

LDL-c:

Low density lipoprotein cholesterol

LDLR:

Low density lipoprotein receptor

OD450:

The optical density value at 450 nm

PCSK9:

Proprotein convertase subtilisin/kexin type 9

RFU:

The relative fluorescence unit

RU:

Response units

SD rat:

Sprague–Dawley rat

sdAb:

Single domain antibody

SPR:

Surface plasmon resonance

TES buffer:

0.2 M Tris–HCl pH 8.0, 0.5 mM EDTA, 0.5 M sucrose

Tg+:

hPCSK9 transgenic rats

VHH:

High variable region of the heavy chain antibody

kDa:

Kilo dalton

PBST:

Phosphate buffer solution with 0.05% tween 20

RNA:

Ribonucleic acid

References

  1. 1.

    Abifadel M, Varret M, Rabes JP, Allard D, Ouguerram K, Devillers M et al (2003) Mutations in PCSK9 cause autosomal dominant hypercholesterolemia. Nat Genet 34(2):154–156. https://doi.org/10.1038/ng1161

  2. 2.

    Arbabi-Ghahroudi M, Tanha J, MacKenzie R (2005) Prokaryotic expression of antibodies. Cancer Metast Rev 24(4):501–519. https://doi.org/10.1007/s10555-005-6193-1

  3. 3.

    Arbabi Ghahroudi M, Desmyter A, Wyns L, Hamers R, Muyldermans S (1997) Selection and identification of single domain antibody fragments from camel heavy-chain antibodies. FEBS Lett 414(3):521–526

  4. 4.

    Arbel R, Hammerman A, Triki N, Greenberg D (2016) PCSK9 inhibitors may improve cardiovascular outcomes-Can we afford them? Int J Cardiol 220:242–245. https://doi.org/10.1016/j.ijcard.2016.06.126

  5. 5.

    Chames P, Van Regenmortel M, Weiss E, Baty D (2009) Therapeutic antibodies: successes, limitations and hopes for the future. Br J Pharmacol 157(2):220–233. https://doi.org/10.1111/j.1476-5381.2009.00190.x

  6. 6.

    Cholesterol Treatment Trialists C, Baigent C, Blackwell L, Emberson J, Holland LE, Reith C et al (2010) Efficacy and safety of more intensive lowering of LDL cholesterol: a meta-analysis of data from 170,000 participants in 26 randomised trials. Lancet. 376(9753):1670–1681. https://doi.org/10.1016/s0140-6736(10)61350-5

  7. 7.

    Coppieters K, Dreier T, Silence K, de Haard H, Lauwereys M, Casteels P et al (2006) Formatted anti-tumor necrosis factor alpha VHH proteins derived from camelids show superior potency and targeting to inflamed joints in a murine model of collagen-induced arthritis. Arthritis Rheum 54(6):1856–1866. https://doi.org/10.1002/art.21827

  8. 8.

    Djender S, Schneider A, Beugnet A, Crepin R, Desrumeaux KE, Romani C et al (2014) Bacterial cytoplasm as an effective cell compartment for producing functional VHH-based affinity reagents and Camelidae IgG-like recombinant antibodies. Microb Cell Fact 13:140. https://doi.org/10.1186/s12934-014-0140-1

  9. 9.

    Essalmani R, Weider E, Marcinkiewicz J, Chamberland A, Susan-Resiga D, Roubtsova A et al (2018) A single domain antibody against the Cys- and His-rich domain of PCSK9 and evolocumab exhibit different inhibition mechanisms in humanized PCSK9 mice. Biol Chem 399(12):1363–1374. https://doi.org/10.1515/hsz-2018-0194

  10. 10.

    Frenken LG, van der Linden RH, Hermans PW, Bos JW, Ruuls RC, de Geus B et al (2000) Isolation of antigen specific llama VHH antibody fragments and their high level secretion by Saccharomyces cerevisiae. J Biotechnol 78(1):11–21

  11. 11.

    Glockshuber R, Malia M, Pfitzinger I, Pluckthun A (1990) A comparison of strategies to stabilize immunoglobulin Fv-fragments. Biochemistry 29(6):1362–1367

  12. 12.

    Goncalves AM, Pedro AQ, Maia C, Sousa F, Queiroz JA, Passarinha LA (2013) Pichia pastoris: a recombinant microfactory for antibodies and human membrane proteins. J Microbiol Biotechnol 23(5):587–601. https://doi.org/10.4014/jmb.1210.10063

  13. 13.

    Hofmann SL, Russell DW, Brown MS, Goldstein JL, Hammer RE (1988) Overexpression of low density lipoprotein (LDL) receptor eliminates LDL from plasma in transgenic mice. Science 239(4845):1277–1281

  14. 14.

    Jorgensen ML, Friis NA, Just J, Madsen P, Petersen SV, Kristensen P (2014) Expression of single-chain variable fragments fused with the Fc-region of rabbit IgG in Leishmania tarentolae. Microb Cell Fact 13:9. https://doi.org/10.1186/1475-2859-13-9

  15. 15.

    Kontermann RE (2016) Half-life extended biotherapeutics. Expert Opin Biol Therapy 16(7):903–915. https://doi.org/10.1517/14712598.2016.1165661

  16. 16.

    Lagace TA, Curtis DE, Garuti R, McNutt MC, Park SW, Prather HB et al (2006) Secreted PCSK9 decreases the number of LDL receptors in hepatocytes and in livers of parabiotic mice. J Clin Investig 116(11):2995–3005. https://doi.org/10.1172/JCI29383

  17. 17.

    Larsen S, Stride N, Hey-Mogensen M, Hansen CN, Bang LE, Bundgaard H et al (2013) Simvastatin effects on skeletal muscle: relation to decreased mitochondrial function and glucose intolerance. J Am Coll Cardiol 61(1):44–53. https://doi.org/10.1016/j.jacc.2012.09.036

  18. 18.

    Lebozec K, Jandrot-Perrus M, Avenard G, Favre-Bulle O, Billiald P (2018) Quality and cost assessment of a recombinant antibody fragment produced from mammalian, yeast and prokaryotic host cells: a case study prior to pharmaceutical development. New Biotechnol 44:31–40. https://doi.org/10.1016/j.nbt.2018.04.006

  19. 19.

    Li X, Duan X, Yang K, Zhang W, Zhang C, Fu L et al (2016) Comparative analysis of immune repertoires between bactrian camel’s conventional and heavy-chain antibodies. PLoS ONE 11(9):e0161801. https://doi.org/10.1371/journal.pone.0161801

  20. 20.

    Lipari MT, Li W, Moran P, Kong-Beltran M, Sai T, Lai J et al (2012) Furin-cleaved proprotein convertase subtilisin/kexin type 9 (PCSK9) is active and modulates low density lipoprotein receptor and serum cholesterol levels. J Biol Chem 287(52):43482–43491. https://doi.org/10.1074/jbc.M112.380618

  21. 21.

    Mayne J, Dewpura T, Raymond A, Cousins M, Chaplin A, Lahey KA et al (2008) Plasma PCSK9 levels are significantly modified by statins and fibrates in humans. Lipids Health Dis 7:22. https://doi.org/10.1186/1476-511X-7-22

  22. 22.

    Muda M, Gross AW, Dawson JP, He C, Kurosawa E, Schweickhardt R et al (2011) Therapeutic assessment of SEED: a new engineered antibody platform designed to generate mono- and bispecific antibodies. Protein Eng Des Select 24(5):447–454. https://doi.org/10.1093/protein/gzq123

  23. 23.

    Petrilli WL, Adam GC, Erdmann RS, Abeywickrema P, Agnani V, Ai X et al (2019) From screening to targeted degradation: strategies for the discovery and optimization of small molecule ligands for PCSK9. Cell Chem Biol. https://doi.org/10.1016/j.chembiol.2019.10.002

  24. 24.

    Peyvandi F, Scully M, Kremer Hovinga JA, Knobl P, Cataland S, De Beuf K et al (2017) Caplacizumab reduces the frequency of major thromboembolic events, exacerbations and death in patients with acquired thrombotic thrombocytopenic purpura. J Thromb Haemost 15(7):1448–1452. https://doi.org/10.1111/jth.13716

  25. 25.

    Roth EM, Davidson MH (2018) PCSK9 Inhibitors: mechanism of Action, Efficacy, and Safety. Rev Cardiovasc Med 19(S1):S31–S46

  26. 26.

    Saremi A, Bahn G, Reaven PD, Investigators V (2012) Progression of vascular calcification is increased with statin use in the Veterans Affairs Diabetes Trial (VADT). Diabetes Care 35(11):2390–2392. https://doi.org/10.2337/dc12-0464

  27. 27.

    Scognamiglio M, Costa D, Sorriento A, Napoli C (2019) Current therapy and nutraceuticals for the treatment of patients with dyslipidemias. Curr Pharm Des. https://doi.org/10.2174/1381612825666190130101108

  28. 28.

    Seidah NG, Benjannet S, Wickham L, Marcinkiewicz J, Jasmin SB, Stifani S et al (2003) The secretory proprotein convertase neural apoptosis-regulated convertase 1 (NARC-1): liver regeneration and neuronal differentiation. Proc Natl Acad Sci USA 100(3):928–933. https://doi.org/10.1073/pnas.0335507100

  29. 29.

    Shen Y, Li H, Zhao L, Li G, Chen B, Guo Q et al (2017) Increased half-life and enhanced potency of Fc-modified human PCSK9 monoclonal antibodies in primates. PLoS ONE 12(8):e0183326. https://doi.org/10.1371/journal.pone.0183326

  30. 30.

    Shimano H, Horton JD, Hammer RE, Shimomura I, Brown MS, Goldstein JL (1996) Overproduction of cholesterol and fatty acids causes massive liver enlargement in transgenic mice expressing truncated SREBP-1a. J Clin Investig 98(7):1575–1584. https://doi.org/10.1172/JCI118951

  31. 31.

    Taylor BA, Thompson PD (2016) Statins and their effect on PCSK9-impact and clinical relevance. Curr Atheroscler Rep 18(8):46. https://doi.org/10.1007/s11883-016-0604-3

  32. 32.

    Vincke C, Gutierrez C, Wernery U, Devoogdt N, Hassanzadeh-Ghassabeh G, Muyldermans S (2012) Generation of single domain antibody fragments derived from camelids and generation of manifold constructs. Methods Mol Biol 907:145–176. https://doi.org/10.1007/978-1-61779-974-7_8

  33. 33.

    Weider E, Susan-Resiga D, Essalmani R, Hamelin J, Asselin MC, Nimesh S et al (2016) Proprotein convertase subtilisin/kexin type 9 (PCSK9) single domain antibodies are potent inhibitors of low density lipoprotein receptor degradation. J Biol Chem 291(32):16659–16671. https://doi.org/10.1074/jbc.M116.717736

  34. 34.

    Weider E, Susan-Resiga D, Essalmani R, Hamelin J, Asselin MC, Nimesh S et al (2016) Proprotein convertase subtilisin/kexin type 9 (PCSK9) single domain antibodies are potent inhibitors of low density lipoprotein receptor degradation. J Biol Chem 291(51):26586. https://doi.org/10.1074/jbc.A116.717736

  35. 35.

    Ylera F, Harth S, Waldherr D, Frisch C, Knappik A (2013) Off-rate screening for selection of high-affinity anti-drug antibodies. Anal Biochem 441(2):208–213. https://doi.org/10.1016/j.ab.2013.07.025

  36. 36.

    Zhang Y, Ultsch M, Skelton NJ, Burdick DJ, Beresini MH, Li W et al (2017) Discovery of a cryptic peptide-binding site on PCSK9 and design of antagonists. Nat Struct Mol Biol 24(10):848–856. https://doi.org/10.1038/nsmb.3453

Download references

Acknowledgements

We thank the funding support from Science, Technology and Innovation Commission of Shenzhen Municipality under Grant Nos. JSGG20170412153009953 and JCY20170817145305022. This study was also supported in part by Ministry of Science and Technology of P. R. China, Special Fund 2016 (Project Name: Single cell sequencing based antibody discovery). We also thank Shenzhen Safari Park and GemPharmatech Co., Ltd for their supports on sample collection.

Funding

This work was supported by the Science, Technology and Innovation Commission of Shenzhen Municipality under Grant (Nos. JSGG20170412153009953 and JCY20170817145305022); Ministry of Science and Technology of P. R. China, Special Fund 2016.

Author information

XL carried out most of the experiments, performed the statistical analysis, and wrote the main manuscript text. MW and XZ provided the screen and cell base assay strategy. CL and HX performed the statistical analysis and prepared Figs. 2, 5. MH, YM and XG designed the immunization program and provided the basic data of Table 1 and Fig. 1. LJ and XL participated in the animal experiments and sample collection. SY, NY, XZ, YH and BL conceived of the study, and participated in its design and coordination. SY and NY revised the manuscript. All authors read and approved the final manuscript.

Correspondence to Shuang Yang or Naibo Yang.

Ethics declarations

Ethics approval and consent to participate

Permission for this study was obtained from the Bioethics and Biological Safety Review Committee of BGI-Shenzhen (No. FT 17064). All blood collection was performed under gentle fixation and all efforts were made to minimize animal suffering. We confirm that all experiments were performed in accordance with relevant guidelines and regulations.

Consent for publication

Not applicable.

Competing interests

The authors declare that they have no competing interests.

Additional information

Publisher's Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Supplementary information

Additional file 1: Fig. S1. The LDL-c metabolism mechanisms and the effects of the PCSK9 protein. Under normal circumstances, LDL-c in the serum binds to the LDLR on the liver cell surface and then be be degraded by lysosome. LDLR would recover its activity on the cell surface (the pathway of orange arrows). PCSK9 protein plays a vital role in cholesterol homeostasis by binding to the LDLR. High level PCSK9 competitively binds LDLR with LDL-c, which would cause disorder of LDL-c metabolism. The LDLR would be degraded abnormally intracellularly (the pathway of green arrows). The antibodies (Evolocumab in red or VHH-Fcin blue) can bind the PCSK9, promote LDLR recovery and restore the LDL-c metabolism at some level.

Additional file 2: Fig.S2. The structure schematic diagram and the amino acid sequence of the PCSK9 protein. The PCSK9 protein is composed of signal peptide (amino acid NO. 1-30), pro-domain (NO. 31-152), catalytic domain (NO. 153-425) and C-terminal domain (NO. 426-692). It consists of 692 amino acid residues. The sequence of the PCSK9 protein was shown every 60 amino acid residues in a row.

Additional file 3: Fig. S3. The serological antibody titer test of the immunized llama. The horizontal axis represents five dilution concentrations of the llama serum. The vertical axis represents the OD450 value. ‘(+)’ and ‘(−)’refer to the coating and no-coating of the antigen hPCSK9 to ELISA plates. ‘Pre’ refers to the collected serum before the immunization. ‘Post’ refers to the collected serum 1 month after last immunization. ‘Blank’ refers to the PBS control of the ELISA assay. The star (#) represents serology positive (the OD450 ratio of post-immune serum/pre-immune serum ≥ 2.1).

Additional file 4: Table S1. The sequences of the sdAbs.

Additional file 5: Fig. S4. The stability test by the affinity determination. (A-E) The storage stability test was performed by the affinity determination of the B11-Fc preserved for 1, 4, 7, 10 and 13 weeks. (F) The thermal stability test was performed by the affinity determination of the B11-Fc at 40 °C reaction temperature. Each colored line represents one antibody concentration. The black lines represent the automatic fitting curves by the built-in evaluation software. The binding and dissociation time was set at 180 s/240 s and 240 s respectively, and the protein injection time point was automatically set as 0 s by the built-in evaluation software.
