RANKL/RANK promotes the migration of gastric cancer cells by interacting with EGFR
Clinical and Translational Medicine volume 9, Article number: 3 (2020)
The incidence and mortality rates of gastric cancer (GC) rank in top five among all malignant tumors. Chemokines and their receptor-signaling pathways reportedly play key roles in the metastasis of malignant tumor cells. Receptor activator of nuclear factor κB ligand (RANKL) is a member of the tumor necrosis factor family, with strong chemokine-like effects. Some studies have pointed out that the RANKL/RANK pathway is vital for the metastasis of cancer cells, but the specific mechanisms in GC remain poorly understood.
This study reports original findings in cell culture models and in patients with GC. Flow cytometry and western blotting analyses showed that RANK was expressed in BGC-823 and SGC-7901 cells in particular. Chemotaxis experiments and wound healing assay suggested that RANKL spurred the migration of GC cells. This effect was offset by osteoprotegerin (OPG), a decoy receptor for RANKL. RANKL contributed to the activation of human epidermal growth factor receptor (HER) family pathways. The lipid raft core protein, caveolin 1 (Cav-1), interacted with both RANK and human epidermal growth factor receptor-1(EGFR). Knockdown of Cav-1 blocked the activation of EGFR and cell migration induced by RANKL. Moreover, RANK-positive GC patients who displayed higher levels of EGFR expression had poor overall survival.
In summary, we confirmed that with the promotion of RANKL, RANK and EGFR can form complexes with the lipid raft core protein Cav-1, which together promote GC cell migration. The formation of the RANK-Cav-1-EGFR complex provides a novel mechanism for the metastasis of GC. These observations warrant confirmation in independent studies, in vitro and in vivo. They also inform future drug target discovery research and innovation in the treatment of GC progression.
A recent study reported that the incidence and mortality rates of GC rank second among all malignant tumors . The majority of patients miss the opportunity to be cured by surgery. Less than 10% of them can live for more than five years and the median survival time is less than 1 year . One of the major causes of the low survival rate is local infiltration and abdominal implant transfer due to GC cell migration.
In recent years, chemokines and their receptor-signaling pathways have been reported to have major roles in the metastasis of cancer cells . RANKL is the ligand of RANK, with a strong chemokine-like effect . The presence of RANKL/RANK pathway has been confirmed in malignant tumors of the respiratory, endocrine, reproductive, and lymphatic systems [5,6,7]. The RANK/RANKL pathway has also been demonstrated to be an important regulator of mammary stem cells and mammary gland development . In addition, it is vital for the initiation, progression, and metastasis of breast cancer [9, 10]. Recently, GC sufferers with high levels of RANKL expression have been confirmed to have shorter overall survival .
The biological function, mechanism, and significance of the epidermal growth factor receptor family have been extensively reported. EGFR and HER2 are generally considered to be markers of poor prognosis in GC sufferers [12, 13]. Studies have shown that RANK can interact with EGFR to regulate osteoclast differentiation and survival . Furthermore, the interaction between EGFR and RANK has been corroborated in vitro and in animal models of metastasis. In addition, the RANK/RANKL axis also has a crucial impact on the occurrence of ErbB2-positive breast cancer . Rodent experiments have shown that RANK can lead to breast cancer progression and can induce early-stage tumor metastasis in HER2-positive breast cancer models, by direct ligand stimulation [16, 17]. According to our present research, RANKL not only stimulated the migration of GC cells, but also promoted EGFR activation, which could be blocked by Cav-1 knockdown. The discovery of this RANK-Cav-1-EGFR complex revealed a novel mechanism for the metastasis of GC.
RANKL induced the migration of GC cells via RANK and EGFR

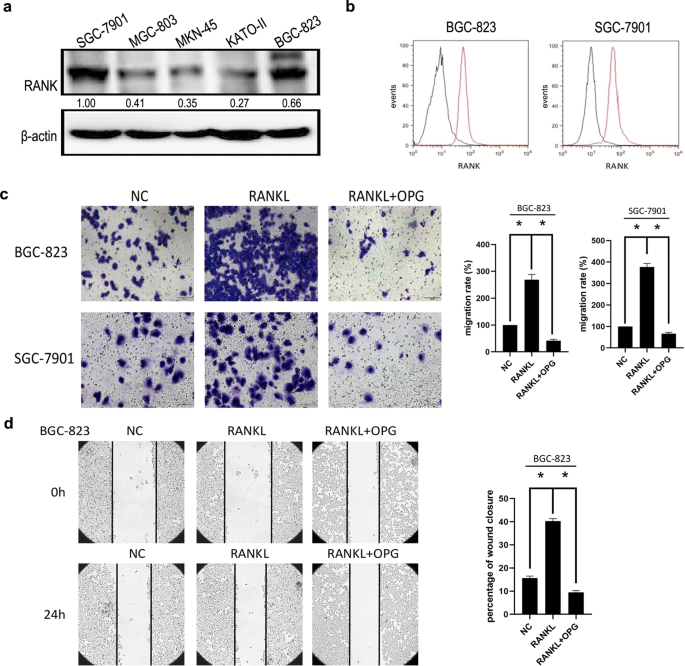

We first verified the RANK expression in various GC cells by western blot (Fig. 1a). After comparison, RANK protein expression levels were highest in BGC-823 and SGC-7901 GC cells. We then tested whether RANK was expressed on the surface of these GC cells. Flow cytometry results showed RANK expression on the surface of BGC-823 and SGC-7901 GC cells (Fig. 1b). Transwell experiments were then used to determine whether RANKL could promote GC cell migration. The results indicated that RANKL (1.0 μg/mL) promoted the migration of GC cells, compared to untreated cells. After the addition of its inhibitor, OPG (10 μg/mL), RANKL-induced GC cell migration was significantly attenuated (Fig. 1c). After being treated with the same reagent and concentration as transwell, the wound healing experiments further confirm the phenomenon above (Fig. 1d). These results suggested that RANKL stimulated the migration of GC cells through RANK.
To investigate whether RANKL had an effect on the HER family, we treated both GC cells with RANKL for the indicated times and observed the level of phosphorylated EGFR. EGFR phosphorylation was obviously up-regulated at 5 min in BGC-823 and 15 min in SGC-7901. Other members of the HER family also showed transient or sustained phosphorylation (Fig. 2a). Moreover, the downstream molecular changes induced by the RANKL-mediated activation of EGFR were offset by transfection of siEGFR (Fig. 2b). Silencing EGFR also partially reversed RANKL-induced GC cell migration (Fig. 2c, d). This indicated that RANKL promoted the migration of GC cells through EGFR and its downstream signaling pathway.
The activation of EGFR by RANKL depended on Cav-1
Numerous membrane receptors interact with each other on the lipid raft platform. To determine the mechanism whereby RANKL regulates EGFR, we examined Cav-1, a key protein of lipid rafts. The results showed that phosphorylated Cav-1 was activated by RANKL in SGC-7901 cells after 45 min of treatment and in BGC-823 cells after 15 min of treatment (Fig. 3a). Silencing of the Cav-1 gene inhibited RANKL-induced EGFR activation (Fig. 3b). This result indicated that RANKL might induce GC cell migration by Cav-1-mediated EGFR activation.
RANKL promoted GC cell migration through the formation of a RANK-Cav-1-EGFR complex
Since RANKL activated EGFR and Cav-1 and Cav-1 regulated EGFR activation, we explored the interaction between these proteins. Our results showed that Cav-1 naturally bound to RANK and EGFR. When treated with RANKL, the interaction of Cav-1, RANK, and EGFR increased after 5 min in BGC-823 cells and after 15 min in SGC-7901 cells (Fig. 4a). Knockdown of Cav-1 inhibited the RANK-Cav-1-EGFR complex assembling (Fig. 4b). Taken together, these findings indicated that RANKL induced GC cell migration through the formation of a RANK-Cav-1-EGFR complex.
High levels of EGFR expression were associated with worse overall survival in RANK-positive GC sufferers
To clarify the impact of RANK and EGFR on disease prognosis, we collected 68 primary GC specimens and used immunohistochemistry to assess EGFR and RANK expression. Immuno-staining confirmed high levels of EGFR expression in 19 patients (27.9%) and high levels of RANK expression in 28 patients (41.2%, Fig. 5a). We grouped RANK-positive patients based on their level of EGFR expression.
Table 1 shows the correlation between EGFR expression and clinic-pathological features in RANK high expression group. The univariate analysis showed that gender and age were not associated with EGFR expression. There existed a positive correlation between EGFR expression and TNM staging and N staging. We get the conclusion that the prognosis was significantly better in those with low EGFR expression sufferers than in those with high EGFR expression sufferers (Fig. 5b). This schematic diagram shows our research content very intuitively: After being stimulated by RANKL, the transmembrane proteins EGFR and RANK form a complex with Cav-1 on the lipid raft platform, which further activates downstream signaling pathways and ultimately promotes gastric cancer migration (Fig. 5c).
Numerous evidence supports RANK’s important function in the development and progression of cancer. RANKL stimulates RANK and has effects on the migration and invasion of cancer cells. Furthermore, RANKL/RANK function as predictors of tumorigenesis and prognosis in many solid tumors, including breast cancer and GC [18,19,20]. RANKL and its receptor, RANK, can be modulated by EGFR signaling . However, the precise molecular mechanisms by which these two pathways interact with each other to affect cancer cell migration remain unclear.
In the present study, flow cytometry and immunoblotting experiments demonstrated that RANK exists in all five GC cell lines, with the highest levels observed in SGC-7901 and BGC-823 cells. Consistent with previous findings, RANK was located on the cell membrane. Furthermore, we examined the effect of RANKL on cell migration and verified that RANKL promoted the invading ability of GC cells. Meanwhile, the stimulation of cell migration by RANKL could be inhibited by EGFR siRNA. More importantly, by activating the EGFR signaling pathway, RANKL notably activated p-EGFR and the expression of its downstream protein, MAPK. Our data not only showed that RANK promoted tumor cell invasion through RANKL, but also suggested that there was crosstalk between the RANK/RANKL pathway and the EGFR signaling pathway.
Another important result in this study was that RANKL facilitated the phosphorylation of Cav-1, a key component of lipid rafts, which regulate signal transduction at the cell surface . To further explore the molecular mechanisms of the interaction between RANKL and EGFR in the regulation of GC invasion and progression, we silenced Cav-1 protein function using a Cav-1 siRNA. The results of these experiments demonstrated that EGFR activity was regulated by RANKL, in a Cav-1-dependent manner. In particular, co-immunoprecipitation experiments revealed that Cav-1 naturally bound with RANK and EGFR. Based on the present findings, we conclude that Cav-1 may make a major contribution to the relationship between RANKL/RANK and the EGFR pathway, which are involved in regulating the migration of GC cells. These data also provide new ideas for explaining and avoiding resistance to EGFR tyrosine kinase inhibitors.
While our study suggested new evidence regarding the mechanisms of GC progression, several limitations should be noted. The clinical study sample size was limited and therefore, future studies with larger sample sizes and in independent populations are required to confirm the findings presented here. To further confirm that Cav-1 directly or indirectly interacts with RANK or EGFR and to identify the functional domain of the binding site, genetic variants of RANK, EGFR, and Cav-1 should be employed. In addition, GST pull-down experiments could be used to advance this emerging body of knowledge on GC cell migration and metastasis.
The formation of RANK-Cav-1-EGFR complex provides a novel mechanism for the metastasis of GC. These observations warrant further replication in independent studies in vitro and in vivo. They also inform future drug target discovery,immunity therapy and diagnostics innovation for GC progression in particular .
Materials and methods
Clinical study, participants, and research ethics
Samples of GC tissue were gathered from 68 sufferers who received Radical surgery at the First Hospital of China Medical University (Shenyang, China) from March 2006 to October 2011. No one had ever received any form of anti-tumor treatment. Clinical and pathological features were evaluated following medical charts and pathological records. The Ethical Committee of the First Hospital of China Medical University approved the study.
RANKL and OPG were obtained from CytoLab/PeproTech Asia (Rocky Hill, NJ, USA). The Cav-1 siRNA was obtained from Shanghai GenePharma Co. Ltd (Shanghai, China). The EGFR siRNA and protein agarose beads were purchased from Cell Signaling Technology, Inc. (Danvers, MA, USA). Lipofectamine 2000 was purchased from Invitrogen (Carlsbad, CA, USA).
Five GC cells were purchased from the Cell Bank of the Chinese Academy of Sciences (Shanghai, China). The specific methods refer to our previous article .
BGC-823 and SGC-7901 cells were sowed at 2.5 × 105 cells/well in six-well plates. RANK expression was detected by flow cytometry according to a previously described method .
Western blotting was performed as previously described [25, 26].
Antibodies against EGFR and Cav-1, protein A-agarose beads, and cell lysates were incubated for 6 h at room temperature. The resulting complex was washed four times with lysis buffer. The technical details of this procedure are described in our previous publication .
Transwell migration assay
For each sample, 200 μl of pretreated cells in serum-free RPMI 1640 medium (SGC-7901, 1 × 104 cells/well; BGC-823, 3 × 104 cells/well; EGFR or Cav-1 gene knocked out) was loaded into the upper well. The lower chambers supplemented with or without RANKL. The specific experimental methods refer to our previous article .
Wound healing assay
For detailed experimental methods, please refer to our previous research .
Transfection with small interfering RNA
The cultured cells were transiently transfected by using Lipo 2000 at the request of the instructions. The following siRNA sequences were used: siCav-1, 5′-AACCAGAAGGGACACACAGUU-3′; EGFR, 5′-CUCCAGAGGAUGUUCAAUATT-3′; and control, 5′-AATTCTCCGAACGTGTCACGT-3′. After 48–72 h of transfection, the cells were sub-cultured for further experiments.
GC tissues were formalin-fixed, paraffin-embedded, and cut into 3 µm sections. The specific details of the immune-histochemical method have been described in our previous report . Briefly, the following antibodies were used for immune-histochemical staining: an anti-RANK antibody from R&D Systems (Minneapolis, MN, USA) and an anti-EGFR antibody from Santa Cruz Biotechnology, Inc. (Dallas, TX, USA). Two independent pathologists observed and evaluated the stained tissue sections by microscopy ( × 20 and × 40 magnification). Five fields were randomly selected from each section and scored based on the percentage of positive cells and the staining intensity of the cells. Sections with 0–10, 10–25, 26–50, 51–75, or > 76% of positively stained cells were recorded as 0, 1, 2, 3, and 4, respectively. Scores > 2 were defined as high expression levels and scores of 0–2 were defined as low expression levels.
All experiments were performed on at least three independent occasions. Data were summarized and are showed as the mean ± SD. Statistical comparisons were performed using a Student’s t-test, with p < 0.05 considered statistically significant. Statistical analysis was performed using SPSS 24.0 software (SPSS, Inc., Chicago, IL, USA).
Availability of data and materials
Data sharing is not applicable to this article as no datasets were generated or analyzed during the current study.
human epidermal growth factor receptor-1
extracellular regulated kinase
fetal calf serum
human epidermal growth factor receptor-2
human epidermal growth factor receptor-3
human epidermal growth factor receptor-4
mitogen-activated protein kinase
phosphorylation human epidermal growth factor receptor-1
phosphorylation human epidermal growth factor receptor-2
phosphorylation human epidermal growth factor receptor-3
phosphorylation human epidermal growth factor receptor-4
receptor activator of nuclear factor-κ B
receptor activator of nuclear factor-κ B ligand
Chen W, Zheng R, Baade PD, Zhang S, Zeng H, Bray F et al (2016) Cancer statistics in China, 2015. CA Cancer J Clin 66(2):115–132
Digklia A, Wagner AD (2016) Advanced gastric cancer: current treatment landscape and future perspectives. World J Gastroenterol 22(8):2403–2414
Wagner AD, Grothe W, Haerting J, Kleber G, Grothey A, Fleig WE (2006) Chemotherapy in advanced gastric cancer: a systematic review and meta-analysis based on aggregate data. J Clin Oncol 24(18):2903–2909
Zlotnik A, Yoshie O (2000) Chemokines: a new classification system and their role in immunity. Immunity 12(2):121–127
Santini D, Perrone G, Roato I, Godio L, Pantano F, Grasso D et al (2011) Expression pattern of receptor activator of NFkappaB (RANK) in a series of primary solid tumors and related bone metastases. J Cell Physiol 226(3):780–784
Zhang L, Teng Y, Zhang Y, Liu J, Xu L, Qu J et al (2012) Receptor activator for nuclear factor kappa B expression predicts poor prognosis in breast cancer patients with bone metastasis but not in patients with visceral metastasis. J Clin Pathol 65(1):36–40
Chen LM, Kuo CH, Lai TY, Lin YM, Su CC, Hsu HH et al (2011) RANKL increases migration of human lung cancer cells through intercellular adhesion molecule-1 up-regulation. J Cell Biochem 112(3):933–941
Joshi PA, Jackson HW, Beristain AG, Di Grappa MA, Mote PA, Clarke CL et al (2010) Progesterone induces adult mammary stem cell expansion. Nature 465(7299):803–807
Gonzalez-Suarez E, Jacob AP, Jones J, Miller R, Roudier-Meyer MP, Erwert R et al (2010) RANK ligand mediates progestin-induced mammary epithelial proliferation and carcinogenesis. Nature 468(7320):103–107
Wood CE, Branstetter D, Jacob AP, Cline JM, Register TC, Rohrbach K et al (2013) Progestin effects on cell proliferation pathways in the postmenopausal mammary gland. Breast Cancer Res 15(4):62–77
Zhang X, Song Y, Song N, Zhang L, Wang Y, Li D et al (2018) Rankl expression predicts poor prognosis in gastric cancer patients: results from a retrospective and single-center analysis. Braz J Med Biol Res 51(3):6265–6273
Kopp R, Ruge M, Rothbauer E, Cramer C, Kraemling HJ, Wiebeck B et al (2002) Impact of epidermal growth factor (EGF) radioreceptor analysis on long-term survival of gastric cancer patients. Anticancer Res 22(2b):1161–1167
Ross JS, McKenna BJ (2001) The HER-2/neu oncogene in tumors of the gastrointestinal tract. Cancer Invest 19(5):554–568
Zhu J, Jia X, Xiao G, Kang Y, Partridge NC, Qin L (2007) EGF-like ligands stimulate osteoclastogenesis by regulating expression of osteoclast regulatory factors by osteoblasts: implications for osteolytic bone metastases. J Biol Chem 282(37):26656–26664
Li R, Zhang K, Penedo TL, Kragel CP, Grizzle WE, Hameed O et al (2016) The RANK Pathway in advanced breast cancer: does Src play a role? Appl Immunohistochem Mol Morphol 24(1):42–50
Tan W, Zhang W, Strasner A, Grivennikov S, Cheng JQ, Hoffman RM et al (2011) Tumour-infiltrating regulatory T cells stimulate mammary cancer metastasis through RANKL-RANK signalling. Nature 470(7335):548–553
Merkhofer EC, Cogswell P, Baldwin AS (2010) Her2 activates NF-kappaB and induces invasion through the canonical pathway involving IKKalpha. Oncogene 29(8):1238–1248
Zhang X, Song Y, Song N, Zhang Y, Zhang L, Wang Y et al (2017) RANKL/RANK pathway abrogates cetuximab sensitivity in gastric cancer cells via activation of EGFR and c-Src. OncoTargets Ther 10:73–83
Tsubaki M, Komai M, Fujimoto S, Itoh T, Imano M, Sakamoto K et al (2013) Activation of NF-kappaB by the RANKL/RANK system up-regulates snail and twist expressions and induces epithelial-to-mesenchymal transition in mammary tumor cell lines. J Exp Clin Cancer Res 32:62–70
Taverna S, Pucci M, Giallombardo M, Di Bella MA, Santarpia M, Reclusa P et al (2017) Amphiregulin contained in NSCLC-exosomes induces osteoclast differentiation through the activation of EGFR pathway. Sci Rep 7(1):3170–3183
Yi T, Lee HL, Cha JH, Ko SI, Kim HJ, Shin HI et al (2008) Epidermal growth factor receptor regulates osteoclast differentiation and survival through cross-talking with RANK signaling. J Cell Physiol 217(2):409–422
Lee YD, Yoon SH, Ji E, Kim HH (2015) Caveolin-1 regulates osteoclast differentiation by suppressing cFms degradation. Exp Mol Med 47:192–200
van Dam PA, Verhoeven Y, Trinh XB, Wouters A, Lardon F, Prenen H et al (2019) RANK/RANKL signaling inhibition may improve the effectiveness of checkpoint blockade in cancer treatment. Crit Rev Oncol Hematol 133:85–91
Cheng Y, Qu J, Che X, Xu L, Song N, Ma Y et al (2017) CXCL12/SDF-1alpha induces migration via SRC-mediated CXCR4-EGFR cross-talk in gastric cancer cells. Oncol Lett 14(2):2103–2110
Song N, Liu S, Zhang J, Liu J, Xu L, Liu Y et al (2014) Cetuximab-induced MET activation acts as a novel resistance mechanism in colon cancer cells. Int J Mol Sci 15(4):5838–5851
Shi X, Zheng C, Li C, Hou K, Wang X, Yang Z et al (2018) 4-Phenybutyric acid promotes gastric cancer cell migration via histone deacetylase inhibition-mediated HER3/HER4 up-regulation. Cell Biol Int 42(1):53–62
Li H, Xu L, Li C, Zhao L, Ma Y, Zheng H et al (2014) Ubiquitin ligase Cbl-b represses IGF-I-induced epithelial mesenchymal transition via ZEB2 and microRNA-200c regulation in gastric cancer cells. Mol Cancer 13:136–148
Zhao L, Liu S, Che X, Hou K, Ma Y, Li C et al (2015) Bufalin inhibits TGF-β-induced epithelial-to-mesenchymal transition and migration in human lung cancer A549 cells by downregulating TGF-β receptors. Int J Mol Med 36:645–652
The authors gratefully thank the academic editor and the anonymous reviewers for their constructive suggestions to improve this manuscript.
This work was supported by the National Natural Science Foundation of China (No. 81302128).
Ethics approval and consent to participate
The Ethical Committee of the First Hospital of China Medical University approved the study. The verbal consent was obtained from the patients or their parent/carer during their admission and hospitalization.
Consent for publication
The authors declare that they have no competing interests.
Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.
Rights and permissions
Open Access This article is licensed under a Creative Commons Attribution 4.0 International License, which permits use, sharing, adaptation, distribution and reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons licence, and indicate if changes were made. The images or other third party material in this article are included in the article's Creative Commons licence, unless indicated otherwise in a credit line to the material. If material is not included in the article's Creative Commons licence and your intended use is not permitted by statutory regulation or exceeds the permitted use, you will need to obtain permission directly from the copyright holder. To view a copy of this licence, visit http://creativecommons.org/licenses/by/4.0/.
