Open Access

Evaluation of patients with multiple sclerosis using reverse nutech functional score and expanded disability status scale after human embryonic stem cell therapy

Clinical and Translational Medicine20165:43

https://doi.org/10.1186/s40169-016-0124-3

Received: 5 September 2016

Accepted: 5 October 2016

Published: 20 October 2016

The Erratum to this article has been published in Clinical and Translational Medicine 2017 6:36

Abstract

Background

The expanded disability status scale (EDSS) is a validated and reliable tool to assess the extent of disabilities in patients with multiple sclerosis (MS). However, the use of this tool has been found to be limited in assessing various symptoms of MS that are important. Our study aimed at evaluating the efficacy of a new scoring system, reverse nutech functional score (RNFS) as compared to EDSS in assessing patients with MS treated with human embryonic stem cell (hESC) therapy.

Methods

The MS patients were treated with hESC therapy for one treatment period. All the patients were evaluated with EDSS and RNFS at baseline and after the hESC therapy.

Results

The study included a total of 24 MS patients with mean age of 45 year. The patients showed an improvement in parameters (sleeping disorders, paralysis, paraesthesia, myalgia, muscle weakness, memory, language, irritability, eye pain, depression and coordination, communication, breathing pattern, attention and appetite) associated with MS when evaluated with RNFS. This improvement went unnoticed when the patients were assessed with EDSS.

Conclusion

RNFS can efficiently assess the effectiveness of hESC therapy in treating patients with MS. It could be a suitable scoring system for patients with MS as it can assess the slightest improvements in the patients. Use in other settings would be helpful in assessing its utility.

Keywords

Multiple sclerosisReverse nutech functional score (RNFS)Human embryonic stem cell (hESC)Expanded disability status scale (EDSS)

Background

Multiple sclerosis (MS) is an autoimmune, chronic inflammatory demyelinating disease of the central nervous system (CNS) with genetic and environmental effects, among young and middle-aged adults [1, 2]. It affects around 2.5 million people worldwide and is the third most common neurologic disorder cited as the cause of disability [3]. According to the Centers for Disease Control and Prevention (CDC), approximately 85 % of the affected people have a relapsing-remitting course, characterized by an unpredictable course of exacerbations and remissions [4]. The diagnosis of MS is based on the lesions present in the CNS which appears in the different areas of brain [5].

The rate of growth of the disease is extremely mutable and uncertain, with an unclear etiology. Presently there is no cure, and only symptomatic therapy is available. Generally, oral or intravenous corticosteroids like methylprednisolone is used at a high dose in the routine therapy for acute attacks which results in a faster recovery from the disability within a duration of three to five days of course [6]. However, the corticosteroid therapy does not have a significant impact on the long term disability [7]. The improvement in therapy is measured by means of expanded disability status scale (EDSS) [8].

Basically, EDSS quantifies disability in eight functional systems (FS) and allows neurologists to assign a functional systems scores (FSS) in each of these systems. It consists of ordinal rating system ranging from 0 (normal neurological status) to 10 (death due to MS) in 0.5 increments interval (when reaching EDSS 1) [8]. EDSS also has a number of limitations. It is dependent on mobility of patient. It is subjective in certain areas (e.g., bowel and bladder function). It is also insensitive to small changes. Further, it does not present an accurate picture of the patient’s cognitive and functional abilities in performing activities of daily living (ADLs). It is nonlinear in terms of the time spent at various ranges of the scale [9].

We have previously published a case study of a patient with MS, who was treated with human embryonic stem cell therapy (hESC) and was assessed with EDSS before and after the therapy [10]. We have also developed a new functional, directional and positional scoring system, reverse nutech functional score (RNFS) to assess the patients with MS [11]. In the current study, we compared the two scoring systems, viz., RNFS and EDSS in patients with MS who underwent a single session of hESC therapy.

Methods

The RNFS scoring system assesses a symptom based on five ordinal grades that runs in a direction of GOOD → BAD. The RNFS system is also useful in conducting probability based studies as these scores have been converted into numeric values. It is a numeric scale that scores all the known symptoms for patients with MS. RNFS for MS is a 36-point positional (i.e., symptoms were sub-graded with a specific score) and directional (i.e., from level 1 to 5) scoring system that can be used to assess or validate the diagnosis of patients with MS [11] whereas EDSS is a scoring system which quantifies disability in eight FS. An improvement in the symptoms was determined on the basis of two criteria referred as W1 and W2, where W1 = number of cases by symptom that score < best possible grade (BPG) at the time of admission or at baseline (BL) and reached BPG at the end of therapy (ET); W2 = number of cases by symptom that scored differently later by at least one grade of RNFS/EDSS as compared to the scores at BL. W1 represented the positive effect of hESC therapy to cure MS whereas W2 exhibited the effect, whether negative, neutral or positive, on the condition of a MS patient.

The establishment and characterization of hESCs were explained in our previous paper [12]. All the patients were assessed for hypersensitivity reactions to hESC by subcutaneous (s.c.) injection of 0.25 mL hESCs. Subsequent to safety evaluation, hESCs were administered via intramuscular (i.m.) route (twice daily) to “prime” the body, 1 mL hESCs (<16 million cells) were administered via intravenous (i.v.) route (twice every 7 days) to “home in” to the required area and 1–5 mL hESCs were administered via any of the supplemental routes including brachial plexus block, intrathecal, epidural catheter caudal, epidural and popliteal block and/or deep spinal muscle (every 7 days). All the patients received nasal sprays of 1 mL hESCs (3.5 million cells) twice a week to enhance the absorption of hESCs to the brain. The detailed methodology has been presented in Fig. 1. The safety studies of hESCs were explained in our previous paper [13].

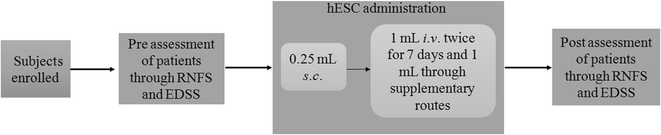

Fig. 1

Schematic diagram for methodology. RNFS reverse nutech functional score; EDSS expanded disability status scale; hESC human embryonic stem cell; sc subcutaneous; iv intravenous

In this study, the patients with MS were assessed with RNFS and EDSS. The RNFS/EDSS scores before and after the therapy were compared to assess which scoring system is better in evaluating the patients treated with hESC therapy. All the patients provided written informed consent prior to start of the study. The study was conducted in accordance with Declaration of Helsinki and approved by an independent Institutional Ethics Committee (IEC).

Results

Patients

A total of 24 patients with a mean age of 45 year were enrolled in the current study. The days of treatment in T1 varied from 42 to 84 days with a gap phase of 120–240 days.

Patient wise status of EDSS grade at the ET

Out of 24 patients, only one patient reached the BPG at ET and 21 patients showed change in grade after the treatment (Table 1).
Table 1

Patient wise status of EDSS grade at the end of therapy

Patient code

Age (years)

Gender

Reached BPG

Change in grade

80806

29

M

No

Yes

80926

35

M

No

Yes

81128

64

M

No

No

80680

61

M

No

Yes

80710

43

M

No

Yes

80488

32

M

No

Yes

80499

61

M

No

Yes

80723

25

M

No

Yes

80981

56

F

Yes

Yes

80889

33

F

No

Yes

81238

30

F

No

Yes

81275

34

F

No

Yes

81114

54

F

No

Yes

81249

45

F

No

Yes

81296

30

F

No

Yes

80568

53

F

No

Yes

80626

54

F

No

Yes

80562

47

F

No

Yes

80768

57

F

No

Yes

81105

57

F

No

Yes

80673

32

F

No

Yes

80637

41

F

No

Yes

81187

53

F

No

No

81180

41

F

No

No

EDSS expanded disability status scale; BPG best possible grade

Cases that scored less than BPG at BL and reached BPG afterwards

Number of affected parameters varied among the patients. Except five patients, all other patients showed an improvement (Table 2).
Table 2

Patient wise number of parameters that scored less than the best possible grade (<BPG) at baseline and reached BPG afterwards

Patient code

Number of affected parameters (<BPG)

Parameters improved at end of therapy; n (%)

80488

22

6 (27.3)

80499

12

6 (50.0)

80680

11

0

80710

15

9 (60.0)

80723

12

6 (50.0)

80806

2

1 (50.0)

80926

4

0

81128

10

3 (30.0)

80562

17

2 (11.8)

80568

17

1 (5.9)

80626

14

5 (35.7)

80637

15

2 (13.3)

80673

10

1 (10.0)

80768

13

1 (7.7)

80889

8

3 (37.5)

80981

5

3 (60.0)

81105

12

1 (8.3)

81114

6

0

81180

17

2 (11.8)

81187

7

0

81238

4

3 (75.0)

81249

9

1 (11.1)

81275

9

1 (11.1)

81296

8

0

BPG best possible grade

Cases that scored differently later by at least one grade of RNFS

All the patients scored differently by at least one grade. One of the patient had 22 parameters that scored <BPG at BL and after the therapy, 20 (90.9 %) parameters improved by at least one grade Table 3.
Table 3

Patient wise number of cases who scored differently later by at least one grade of RNFS score at baseline

patient code

Number of affected parameters at BL (<BPG)

Alteration in score by at least one grade

No change; n (%)

Better; n (%)

80488

22

2 (9.1)

20 (90.9)

80499

12

3 (25.0)

9 (75.0)

80680

11

0

11 (100.0)

80710

15

3 (20.0)

12(80.0)

80723

12

3 (25.0)

9 (75.0)

80806

2

1 (50.0)

1 (50.0)

80926

4

2 (50.0)

2 (50.0)

81128

10

4 (40.0)

6 (60.0)

80562

17

0

17 (100.0)

80568

17

4 (23.5)

13 (76.5)

80626

14

4 (28.6)

10 (71.4)

80637

15

9 (60.0)

6 (40.0)

80673

10

5 (50.0)

5 (50.0)

80768

13

7 (53.8)

6 (46.2)

80889

8

3 (37.5)

5 (62.5)

80981

5

0

5 (100.0)

81105

12

6 (50.0)

6 (50.0)

81114

6

5 (83.3)

1 (16.7)

81180

17

10 (58.8)

7 (41.2)

81187

7

4 (57.1)

3 (42.9)

81238

4

0

4 (100.0)

81249

9

6 (66.7)

3 (33.3)

81275

9

8 (88.9)

1 (11.1)

81296

8

6 (75.0)

2 (25.0)

RNFS reverse nutech functional score; BL baseline; BPG best possible grade

Parameters that scored less than BPG at BL and reached BPG afterwards

The scores for cases have also been categorized based on the affected parameters. Muscle weakness, an important symptom of MS, was scored to be as <BPG in all the cases at BL. At ET, 3 (12.5 %) patients reached BPG. Fatigue was scored as <BPG in 22 cases at BL, 8 (36.4 %) of them reached BPG at ET. The scores of all other parameters are presented in Table 4.
Table 4

Parameter wise number of patients who scored less than the best possible grade (<BPG) at baseline and reached BPG afterwards

Parameters

Affected patients (<BPG)

Improved patients at end of therapy; n (%)

Appetite

7

7 (100.0)

Attention

3

3 (100.0)

Balance—eyes closed in straight line

26

1 (3.8)

Balance—eyes open in straight line

24

3 (12.5)

Bladder—control

12

2 (16.7)

Bladder—sensation

8

2 (25.0)

Bowel—control

6

1 (16.7)

Bowel—sensation

4

2 (50.0)

Breathing pattern—Brady

1

1 (100.0)

Communication—speech

4

2 (50.0)

Coordination

14

0

Deformity

8

1 (12.5)

Depression

6

4 (66.7)

Double-vision + color blindness

5

1 (20.0)

Ears—hearing

3

3 (100.0)

Eye pain

2

2 (100.0)

Fatigue

22

8 (36.4)

Floaters

2

1 (50.0)

Irritability

7

4 (57.1)

Language

3

1 (33.3)

Limb tremors

15

6 (40.0)

Memory

7

5 (71.4)

Muscle weakness

27

3 (11.1)

Myalgia

11

5 (45.5)

Orientation—yes or no

1

1 (100.0)

Pain

18

7 (38.9)

Paralysis

5

0

Paraesthesia

11

5 (45.5)

Physical—drooling

1

1 (100.0)

Sitting

18

5 (27.8)

Sleep disorder—hypersomnia

4

4 (100.0)

Sleep disorder—hyposomnia

3

2 (66.7)

Stiffness

19

10 (52.6)

Tingling

7

3 (42.9)

Tinnitus

3

3 (100.0)

Vision—blurring

11

3 (27.3)

BPG best possible grade

Discussion

In this study, an improvement in condition of the patients was evaluated more efficiently with RNFS system by highlighting even the slightest improvement. The levels in RNFS run in direction 1 (Good) → 5 (Bad) and patients could be placed in these levels on the basis of their symptoms and functional limitations.

Gray and Butzkueven stated that EDSS is subjective in certain areas (e.g., bowel and bladder function). It is also insensitive to small changes. Further, it does not present an accurate picture of the patient’s cognitive abilities and functional abilities in performing ADLs. It is nonlinear in terms of the time spent at various ranges of the scale [14]. Moreover, the practitioners and staff of our institute observed that EDSS emphasize mainly on the mobility of MS patients. The system is unable to assess other important parameters such as; sleeping disorders, paralysis, paraesthesia, myalgia, muscle weakness, memory, language, irritability, eye pain, depression, coordination, communication, breathing pattern, attention and appetite that were important to gauge in a patient with MS.

Schwid et al. reported in the study for comparing limitations of walking ability in MS patients, the EDSS and ambulation index (AI) were less sensitive to change than the D max (the maximum distance that a person can go) and T8 (time to walk 8 m) [15]. Similarly, Vaney et al. reported lesser changes in EDSS than in the Rivermead mobility index (RMI), the AI and the 10 m walking time test [16]. Hohol et al. reported a lower sensitivity to change in EDSS compared with disease steps [17]. Healy et al. conducted a study to assess the sustained disease progression in relapsing-remitting multiple sclerosis (RRMS) with EDSS. The author found, between 15.8 and 42.2 % of patients experienced sustained progression based on the definitions using EDSS as the outcome, but nearly 50 % of these patients failed to maintain sustained progression for the duration of follow-up. The author concluded that short-term changes in the EDSS scores may not be an accurate marker of irreversible change in RRMS [18]. It has been difficult for clinicians to make normative evaluations of patient’s motor potency with EDSS. However, RNFS system is a functional and parametric system that assesses a patient with MS on the basis of all the parameters that were associated with MS. In our study, RNFS identified even the smallest change in the parameters of MS. Figure 2 show the list of disease related parameters that are assessed by RNFS but not by EDSS.
Fig. 2

Parameters covered by reverse nutech functional score but not by expanded disability status scale. RNFS reverse nutech functional score; EDSS expanded disability status scale

Use of hESC therapy has generally led to a concern because of clinical non-viability in culturing of cells in a xeno-free environment. However, our institution uses a patented methodology [19] for the extraction, isolation and maintenance of hESCs [12, 13]. The ability of stem cells to proliferate and to reconstruct the damaged parts offers excellent possibilities [20]. Previous studies have shown the potential of stem cells to migrate at the injury site and commence host repair and healing via the direct or indirect cell-signalling. In the course of brain injury, stem cells initiate neuroprotection and neural repair by inflammatory suppression, causing tissue reconstruction and avert cell damage. We have also reported the efficacy of hESCs in patients with MS [10]. The current study highlights the effectiveness of hESC therapy (as per the findings of RNFS and EDSS assessment) in the treatment of patients with MS. However, the assessment of MS lesions using gadolinium dye is warranted. Advances in this field are required to substantiate the efficacy results.

Conclusion

The RNFS is a solitary classification system for the patients of all ages with diminished complexity of the assessment system for the practitioners. So, we conclude that the newly developed RNFS is a unique tool can be used to gauge the betterment of patients receiving hESC therapy. Thus, this newly developed classification, functional and evaluation system can be used globally to help the patients with MS.

Notes

Abbreviations

MS:

multiple sclerosis

CNS:

central nervous system

CDC:

Centers of Disease Control and Prevention

EDSS:

expanded disability status scale

FS:

functional systems

FSS:

functional systems scores

ADL:

activities of daily living

hESC:

human embryonic stem cell

RNFS:

reverse nutech functional score

BPG:

best possible grade

BL:

baseline

ET:

end of therapy

IEC:

Institutional Ethics Committee

AI:

ambulation index

RMI:

Rivermead mobility index

RRMS:

relapsing-remitting multiple sclerosis

Declarations

Acknowledgements

The author acknowledges all the doctors, staff and patients of the Nutech Mediworld. The author also acknowledges Knowledge Isotopes Pvt. Ltd. (http://www.knowledgeisotopes.com) for the medical writing assistance.

Competing interests

The author declares that she has no competing interests.

Ethics approval and consent to participate

The study was conducted in accordance with Declaration of Helsinki and approved by an independent Institutional Ethics Committee (IEC). All the patients provided written informed consent prior to start of the study.

Open AccessThis article is distributed under the terms of the Creative Commons Attribution 4.0 International License (http://creativecommons.org/licenses/by/4.0/), which permits unrestricted use, distribution, and reproduction in any medium, provided you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made.

Authors’ Affiliations

(1)
Nutech Mediworld

References

  1. Wingerchuk DM, Carter JL (2014) Multiple sclerosis: current and emerging disease-modifying therapies and treatment strategies. Mayo Clin Proc 89(2):225–240View ArticlePubMedGoogle Scholar
  2. International Multiple Sclerosis Genetics Consortium, Wellcome Trust Case Control Consortium, Sawcer S, Hellenthal G, Pirinen M, Spencer CC et al (2011) Genetic risk and a primary role for cell-mediated immune mechanisms in multiple sclerosis. Nature 476(7359):214–219View ArticleGoogle Scholar
  3. Bethoux F, Bennett S (2011) Evaluating walking in patients with multiple sclerosis: which assessment tools are useful in clinical practice? Int J MS Care 13(1):4–14View ArticlePubMedPubMed CentralGoogle Scholar
  4. Noonan CW, Williamson DM, Henry JP, Indian R, Lynch SG, Neuberger JS et al (2010) The prevalence of multiple sclerosis in 3 US communities. Prev Chronic Dis 7(1):A12PubMedGoogle Scholar
  5. Calabresi PA (2004) Diagnosis and management of multiple sclerosis. Am Fam Physician 70(10):1935–1944PubMedGoogle Scholar
  6. Sellebjerg F, Barnes D, Filippini G, Midgard R, Montalban X, Rieckmann P et al (2005) EFNS guideline on treatment of multiple sclerosis relapses: report of an EFNS task force on treatment of multiple sclerosis relapses. Eur J Neurol 12(12):939–946View ArticlePubMedGoogle Scholar
  7. Ciccone A, Beretta S, Brusaferri F, Galea I, Protti A, Spreafico C (2008) Corticosteroids for the long-term treatment in multiple sclerosis. Cochrane Database Syst Rev 1:CD006264Google Scholar
  8. Kurtzke JF (1983) Rating neurologic impairment in multiple sclerosis: an expanded disability status scale (EDSS). Neurology 33(11):1444–1452View ArticlePubMedGoogle Scholar
  9. Sharrack B, Hughes RA, Soudain S, Dunn G (1999) The psychometric properties of clinical rating scales used in multiple sclerosis. Brain 122(Pt 1):141–159View ArticlePubMedGoogle Scholar
  10. Shroff G (2015) Human embryonic stem cell for the treatment of multiple sclerosis: a case report. Case Rep Int 4:38–42Google Scholar
  11. Shroff G (2015) Scoring system approach of reverse Nutech functional score to assess patients with multiple sclerosis. J Neurol Transl Neurosci 4(2):1066Google Scholar
  12. Shroff G (2015) Establishment and characterization of a neuronal cell line derived from a 2-cell stage human embryo: clinically tested cell-based therapy for neurological disorders. Int J Recent Sci Res 6(4):3730–3738Google Scholar
  13. Shroff G, Barthakur JK (2015) Safety of human embryonic stem cells in patients with terminal/incurable conditions—a retrospective analysis. Ann Neurosci 22(3):132–138PubMedPubMed CentralGoogle Scholar
  14. Gray O, Butzkueven H (2008) Measurement of disability in multiple sclerosis. Neurol Asia 13:153–156Google Scholar
  15. Schwid SR, Goodman AD, Apatoff BR, Coyle PK, Jacobs LD, Krupp LB et al (2000) Are quantitative functional measures more sensitive to worsening MS than traditional measures? Neurology 55(12):1901–1903View ArticlePubMedGoogle Scholar
  16. Vaney C, Blaurock H, Gattlen B, Meisels C (1996) Assessing mobility in multiple sclerosis using the Rivermead mobility index and gait speed. Clin Rehabil 10(3):216–226View ArticleGoogle Scholar
  17. Hohol MJ, Orav EJ, Weiner HL (1995) Disease steps in multiple sclerosis: a simple approach to evaluate disease progression. Neurology 45(2):251–255View ArticlePubMedGoogle Scholar
  18. Healy BC, Engler D, Glanz B, Musallam A, Chitnis T (2013) Assessment of definitions of sustained disease progression in relapsing-remitting multiple sclerosis. Mult Scler Int 2013:189624PubMedPubMed CentralGoogle Scholar
  19. World Intellectual Property Organization. 21. (WO2007141657) Compositions comprising human embryonic stem cells and their derivatives, methods of use, and methods of preparation. https://www.patentscope.wipo.int/search/en/detail.jsf?docId=WO2007141657&recNum=21&maxRec=21&office=&prevFilter=&sortOption=Pub+Date+Desc&queryString=FP%3A(geeta+shroff)&tab=PCTDescription. Accessed 20 Aug 2016
  20. Ul Hassan A, Hassan G, Rasool Z (2009) Role of stem cells in treatment of neurological disorder. Int J Health Sci (Qassim) 3(2):227–233Google Scholar
