Open Access

Cellular reprogramming for pancreatic β-cell regeneration: clinical potential of small molecule control

Clinical and Translational Medicine20143:6

DOI: 10.1186/2001-1326-3-6

Received: 7 February 2014

Accepted: 17 March 2014

Published: 27 March 2014

Abstract

Recent scientific breakthroughs in stem cell biology suggest that a sustainable treatment approach to cure diabetes mellitus (DM) can be achieved in the near future. However, the transplantation complexities and the difficulty in obtaining the stem cells from adult cells of pancreas, liver, bone morrow and other cells is a major concern. The epoch-making strategy of transcription-factor based cellular reprogramming suggest that these barriers could be overcome, and it is possible to reprogram any cells into functional β cells. Contemporary biological and analytical techniques help us to predict the key transcription factors needed for β-cell regeneration. These β cell-specific transcription factors could be modulated with diverse reprogramming protocols. Among cellular reprogramming strategies, small molecule approach gets proclaimed to have better clinical prospects because it does not involve genetic manipulation. Several small molecules targeting certain epigenetic enzymes and/or signaling pathways have been successful in helping to induce pancreatic β-cell specification. Recently, a synthetic DNA-based small molecule triggered targeted transcriptional activation of pancreas-related genes to suggest the possibility of achieving desired cellular phenotype in a precise mode. Here, we give a brief overview of treating DM by regenerating pancreatic β-cells from various cell sources. Through a comprehensive overview of the available transcription factors, small molecules and reprogramming strategies available for pancreatic β-cell regeneration, this review compiles the current progress made towards the generation of clinically relevant insulin-producing β-cells.

Keywords

Cellular reprogramming Diabetes mellitus Transcription factors Pancreatic β cells Small molecules

Introduction

Diabetes mellitus (DM) is an endocrine disorder associated with hyperglycemia and results in severe damage to the blood vessels, eyes, kidneys and heart. According to the latest survey, 347 million people worldwide suffer from DM, and about 10% of adults in upper-middle- and middle-income countries have the highest prevalence of this disorder[1]. The DM pandemic could grow exponentially in the next few decades and hence; there is a huge economic burden on governments and individuals[2]. This chronic disease is categorized into three major types. Type I DM (T1DM) is an autoimmune disease characterized by insulin secretion deficiency instigated by the destruction of insulin-producing β cells[3]. The non-insulin-dependent type 2 DM (T2DM) is a metabolic disease identified by insulin resistance and pancreatic β cell dysfunction and is predominantly caused by a poor lifestyle[4]. Recent studies indicate that mutations in certain genes such as MADD (IG20) also play a critical role in causing T2DM[5]. Gestational DM is another major form of DM affecting about 3–10% of pregnancies, which in severe cases can lead to neonatal and intrauterine fetal mortality[6].

Functional β cells could be derived from human pancreatic stem/progenitor cells through differentiation protocols. However, resourcing issues and the lack for characterized markers hamper the employment of these cells. Induced pluripotent stem (iPS) cell technology extends the possibility of generating safe and functional pancreatic β cells without the possible risk of implant rejection and offers a potential cure for both T1DM and T2DM[7]. Recent progress in functional genomics provides us the sequence of 3 billion base pair human genome, and through loss-of-function studies we can identify cell fate modulating transcription factors (Figure 1A). Enforced transcriptional activation of some of these key genes can de-differentiate and/or trans-differentiate the human somatic cells like fibroblasts into different cell types (Figure 1B)[810].
https://static-content.springer.com/image/art%3A10.1186%2F2001-1326-3-6/MediaObjects/40169_2014_Article_50_Fig1_HTML.jpg
Figure 1

Transcription factor-based cellular reprogramming. (A) Modern experimental techniques like DNA chips, expression arrays and next generation sequencer (Shown in the arrow) facilitate us to gain insight into the human genome and identify novel genes/factors conferring to diseases and/or cell fate modulation (B) Enforced transcriptional activation of defined factors reprogram human somatic fibroblasts into different cell types like pluripotent stem cells[8], cardiac progenitors[9] and hepatocytes[10].

It is now possible to reprogram majority cell type precisely across lineage boundaries into desired cell type including pancreatic β cells. Contemporary high-throughput and characterization studies facilitate the screening and identification of small molecules capable of modulating several such key transcription factors[11]. A novel DNA-based targeting epigenetic switch induced key transcription factors associated with insulin secretion[12]. In this review, we provide a critical overview of the strategies available for pancreatic β cell regeneration and list some of the well-known and recently identified transcription factors. We also give a detailed overview of the available reprogramming strategies including small-molecule control of cell fate, discuss the major barriers hindering their clinical use, and suggest future directions to achieve functional pancreatic β cells efficiently and safely.

Review

Treatment options for DM

Since the discovery of insulin in 1921, insulin replacement has become the main treatment for controlling plasma glucose level[13]. Various treatment options are now available to manage both T1DM and T2DM, and they rely largely on lifestyle changes such as dietary restrictions. The major drugs to treat DM include insulin, glucagon-like peptide 1 agonists, sulfonylureas, metformin, thiazolidinediones, α-glucosidase inhibitors, and dipeptidyl peptidase-4 inhibitors[14, 15]. Despite remarkable progress and exciting discoveries over the past decade, a permanent cure for DM is yet to be achieved. The continuous need for antidiabetic drugs in DM treatment and chronic hyperglycemia lead to infections, ketoacidosis, hypoglycemia, and micro- and macrovascular disorders affecting the retina and nervous, renal, cardiovascular, and cerebrovascular systems[13]. It is also difficult to maintain long-term glycemic control in patients with DM[16, 17].

Through innovative integration of a continuous glucose monitoring device and an insulin pump, a recent FDA-approved device called a bio artificial pancreas from Medtronic has been shown to improve the insulin treatment in T1DM[18]. Bio artificial pancreas technology is still at an early stage, and any long-term effects are yet to be evaluated. Organ replacement therapies such as pancreatic transplantation are other strategies available to treat DM; however, they have postoperative complications. Islet allograft transplantation to replace β cells is another minimally invasive strategy. However, these cell transplantation strategies rely largely on cadavers as donors[19]. Moreover, limitations such as toxicity arising from the prolonged use of immunosuppressants, graft cell loss and the damage caused by autoimmune responses are some major concerns[16, 20]. The rapid advances in stem cell technologies suggest the possibility to overcome the abovementioned limitations of cell replacement therapy.

Stem cell therapy for DM

Stem cells are characterized by their remarkable ability to self-renew and to acquire varying degrees of potency for differentiation. Depending on the kind of division (symmetric or asymmetric) modulated by the microenvironment, stem cells give rise to either an offspring preserving the characteristics of the parent stem cell or another progeny with different potency and lineage potential[13]. Throughout life, stem cells are maintained as tissue-specific adult stem cells in the body. Some of the primary stem cell sources available to achieve β cell replacement include pancreatic stem cells, hepatic stem cells and mesenchymal stem cells (MSCs). However, lack of characterization studies hampers the classification of any group of these cells as pancreatic stem cells. A group of cells classed as pancreatic duodenal homeobox 1 (PDX1)+/ insulin (INS)+/glucose transporter 2 (SLC2A2) cells isolated from the pancreatic duct and pancreatic islet tissues of transgenic mice have been classified as pancreatic progenitor cells[20]. Recently, Lima et al. reprogrammed the human exocrine pancreatic tissue into functional insulin producing β-like cells by suppressing epithelial-to-mesenchymal transition[21].

Considering the difficulty in obtaining pancreatic stem cells, bone marrow stem cells such as MSCs are preferred as they can be obtained easily[22]. The mechanism behind the MSC-mediated stimulation of β cell regeneration is still under debate[23]. Nevertheless, the evidence thus far clearly substantiates MSCs as a clinical-friendly cell source to treat DM owing to their immunomodulatory effects[24, 25]. The shared developmental origin of hepatic, pancreatic and common progenitor cells suggests hepatic stem cells to be a better choice for achieving functional insulin-producing β cells[26]. Accordingly, enforced transcriptional activation of Pdx1 and Ngn3 by adenoviral transfection maintained blood glucose levels by inducing the differentiation of pancreatic endocrine and exocrine cells[27]. Embryonic stem cells (ESCs) are pluripotent in nature and might be stimulated to differentiate into pancreatic β cells through in vitro differentiation protocols. Human ESC-derived pancreatic progenitor cells had the capability to differentiate and mature, and they synthesized insulin after being transplanted into mice[28]. Recent reports on human ESC-derived insulin-producing cells and demonstration of their capability to treat artificially induced hyperglycemia in mice substantiate their therapeutic prospects[29]. However, the sourcing of ESCs and the ethical controversy regarding the destruction of human embryos to produce them is a major concern. The epoch-making discovery of iPS cell technology not only eased the ethical controversy associated with human ESC research but also opened up the possibility of reprogramming any cell to a desired cellular phenotype[30]. Artificial induction of pluripotency in human somatic cells through enforced transcriptional activation of four factors (OCT4, SOX2, c-MYC, and KLF4) has opened up new opportunities to reverse the fate of any terminally differentiated cells into pluripotent stem cells[31]. Several strategies are now available to achieve pluripotent stem cells (Figure 2A) from a variety of cell sources (Figure 2B)[30].
https://static-content.springer.com/image/art%3A10.1186%2F2001-1326-3-6/MediaObjects/40169_2014_Article_50_Fig2_HTML.jpg
Figure 2

Approaches to iPS cell generation and the obstacles to their clinical translation. (A) In canonical approach (dark-gray arrow), retroviral derived iPS cells could differentiate into varied cell types. However, the risk of tumor formation and their culture in xeno-medium can inhibit the clinical translation of these cells. Alternative non-integrating approaches[30, 31] in which the overexpression of defined reprograming factors in various ways (green arrowhead) generate iPS cells that circumvent tumor formation, and when cultured in xeno-free medium, can avoid the xeno contamination that hinders their clinical translation. Several bottlenecks, including epigenetic errors, low efficiency, and protocol optimization, are highlighted (blue cylinder). (B) Various cell sources (microscopic images) can be reset for a journey back in time to iPS cells (illustrated as the time machine icon)[30].

Because the resulting iPS cells have all the potential of ESCs[8], they can be readily differentiated into cells across lineage boundaries. Derivation of β cells from iPS cells can lead to clinically safe autologous cell populations and hence can be an ideal source for transplantation therapy. Using human iPS cells, Tateishi et al. first derived functional insulin-producing β cells forming islet-like clusters composed of C-peptide- and glucagon-positive cells[32]. In 2009, Maehr et al. demonstrated that iPS cells derived from the skin fibroblasts of a patient with T1DM could differentiate into insulin-producing/glucose-responsive cells[33]. This innovative approach not only overcame the barrier of immune rejection but also could aid in identifying the genomic aberrations associated with T1DM. These patient-derived iPS cells (termed DiPS) expressed and stained positive for some of the pancreatic endocrine markers including insulin, PDX1, NKX2-2, glucagon and somatostatin. Interestingly, DiPS secreted insulin upon glucose stimulation in a dose-dependent manner.

Zhang et al. improved the efficiency of differentiation protocols and generated mature β-like cells expressing markers (C-peptide, PDX1, GLUT2, MAFA, NKX6-1, ISL-1 and NEUROD1) similar to adult β cells[34]. In 2010, Alipio et al. demonstrated the clinical potential of iPS-cell-derived β cells by transplanting them into a mouse model of T2DM. The transplanted cells corrected the blood glucose levels and hyperglycemia for a long time concomitantly with an increase in the in vivo concentration of insulin[35]. It is important to note here that the iPS-derived insulin-producing cells engrafted stably and became distributed to survive within the host tissue. This approach was also successful in a mouse model of T1DM and hence, suggested the clinical potential of iPS-derived insulin-producing cells. Thus, it is now possible to generate human pancreatic endoderm and differentiate them in vivo into glucose responsive mature islet cell types capable of secreting C-peptide, insulin, glucagon, or somatostatin. However, the current differentiation protocols could not result in the generation of clinically significant levels of human endocrine hormone. Recent reports focus on the importance of deriving pancreatic progenitor cells that follow in vivo pancreatic developmental ontogeny during differentiation of pluripotent stem cells[36, 37]. Evaluation of long-term complications and identification of key transcription factors could further support the therapeutic potential of iPS cells in treating patients with DM.

Cellular reprogramming and beta cell regeneration

Transcription factors and pancreatic development

There has been an exponential increase in studies reporting the identification of key genes/factors capable of switching the cell fate from one state to another. Several transcription factors operating at various stages of development govern the sequential cascade of transcriptional ‘ON’ and ‘OFF’ mechanisms orchestrating pancreatic organogenesis. Through functional genomics and genetic studies in mice, the functional role of some transcription factors in coordinating normal organogenesis and the subsequent specification into distinctive endocrine cell types got identified[38]. Interestingly, single nucleotide polymorphisms occur frequently in the binding sites of these transcription factors[39]. Pancreatic and duodenal homeobox 1 (PDX1) play a vital role as the master regulator in different stages of pancreatic development and islet cell morphogenesis[40]. PDX1 coordinates the intricate transcriptional regulatory interactions between the transcription factors, which confers to the multi-potent pancreatic progenitors[38]. Considering its association in regulating key β cell genes, PDX1 could be a pharmacological target for β-cell defects in T2DM[40]. Loss-of-function studies suggested the key role of the self-regulating pancreas transcription factor 1 subunit (PTF1A) in ensuring the lineage commitment of pancreatic buds towards pancreatic progenitor fate[41]. The role of GATA factors in pancreas development got verified in a mouse model where the simultaneous inactivation of both Gata4 and Gata6 perturbed the proliferation of pancreatic progenitor cells and caused faulty branching morphogenesis[42]. Likewise, simultaneous removal of Foxa1 and Foxa2 disturbed the early event regulating the pancreas formation[43]. Interestingly, in both the above-mentioned studies, loss of Pdx1 expression got associated with pancreatic hypoplasia[42, 43]. The sequential activation of the hepatocyte nuclear factors (HNFs) like HNF1β and HNF6 expressing in endoderm and Pdx1 modulate the generation of pancreatic progenitors[44]. Lynn et al. showed that the Sry/HMG box transcription factor SOX9 could coordinate transcription factors expressed in pancreatic progenitor cells[45].

The NK-homeodomain factor Nkx2.2 and its downstream gene Nkx6.1 plays a major role in the development of insulin producing β-cells[46]. The LIM homeodomain protein ISL1 is a critical factor for the development of the dorsal exocrine pancreas and could direct mesenchymal cells into either an endocrine or an exocrine state[47]. Itkin-Ansari et al. demonstrated that the basic helix-loop-helix transcription factor NeuroD1 functions as both a transcriptional activator and repressor in the establishment and maintenance of mature endocrine cells[48]. Pax4 operate in concert with Pax6 to regulate normal pancreatic endocrine development and the master regulator Pdx-1 controls the transcription of the insulin, GLUT-2, GK, and Nkx6-1 in adult β-cells[49]. The transcription factor neurogenin 3 (Ngn3) regulate the expression of Isl1, Pax4, Pax6, and NeuroD1 and trigger the differentiation of the β-cells from pancreatic endoderm to specify four endocrine cell lineages of the pancreas[50]. Smith et al. showed that the coordinating role of the regulatory factor X, 6 (Rfx6) in the completion of the differentiation process initiated by Ngn3. Since Rfx6 lies downstream of Ngn3 and upstream of other islet transcription factors, a comprehensive understanding of the role of Rfx6 could aid the generation of β-cells from patients with DM[51]. The essential role of the Maf factors like MafB and MafA in the pancreatic β-cell differentiation and maturation is known[52]. Gaining insights into the binding sites of diverse transcription factors could aid the uncovering of underexplored regulatory pathways affecting pancreatic β cells and causing DM.

Transcription factor-based cellular reprogramming

Cellular reprogramming strategies also suggest the possibility to achieve insulin-producing β cells by trans-differentiating a wide range of cells. In particular, the cells like hepatocytes and non-endocrine pancreatic cells sharing the common lineage have a better chance to get reprogrammed into β cells. Although these cells cannot secrete insulin owing to the absence of some key factors, they express some common proteins. For example, hepatocytes cannot make insulin from proinsulin but express the factors responsible for stimulus-secretion coupling like glucose transporter 2 and glucokinase, which also occur in the β cell. Hence, fewer factors could be required to reprogram such cells into insulin producing β cells. Accordingly, adenovirus-mediated gene transfer of Pdx1 into mice reprogrammed hepatocytes into cells capable of decreasing blood-glucose levels by producing insulin[53] and when fused to VP16 transcriptional activation domain (Pdx1/VP16), the efficiency of insulin producing cell generation were significantly enhanced (Figure 3A)[54]. Subsequently, the adenoviral transfection of PDX1 reprogrammed hepatocytes or the cells from human liver biopsies into cells capable of controlling blood glucose levels in DM animals (Figure 3A)[55]. Using the adeno-associated virus-mediated transfer, Wang et al. later demonstrated that the adenovirus transduction-triggered immune response play a critical role in the reprogramming of hepatocytes into β-like cells[56]. Likewise, viral-mediated delivery of Ngn3, MafA, and Pdx1 reprogrammed the acinar cells of the immunodeficient mice into insulin-positive cells (Figure 3B)[57]. Despite the problems like the inability to form organized and fully functional islet structures, this proof-of-concept study suggested the possibility to transform nonendocrine pancreatic cells into cells having the β-like function.
https://static-content.springer.com/image/art%3A10.1186%2F2001-1326-3-6/MediaObjects/40169_2014_Article_50_Fig3_HTML.jpg
Figure 3

Insulin producing cells (IPCs) from various cell sources. (A) Overexpression of the defined exogenous transcription factors (Pdx1; Pdx1/VP16 (fusion protein) + NeuroD; Pdx1/VP16 (fusion protein) + Ngn3) in liver cells generate IPCs[53, 54]. (B) IPCs could also be induced from pancreatic non-β cells such as acinar cells and α-cells by forced expression of Ngn3 + Pdx1 + Mafa and Pax4, respectively[58]. (C) Adipose tissue-derived stem cells could be differentiated into functional IPCs by transducing Pdx1[59].

Through the ectopic expression of Pax4, Collombat et al. reprogrammed pancreatic progenitor cells expressing Pdx1 into glucagon expressing α cells, which then got reprogrammed into insulin-positive cells (Figure 3B)[58]. However, in the older animals, the normoglycemia could not be restored and the reason behind this effect is unclear. Nevertheless, this study suggested that to achieve glucose-responsive, insulin-secreting β cells, alpha cells from DM patients could serve as a potential cell source. Kajiyama et al. showed that, upon Pdx1 transfection, the adipose tissue-derived stem cells could differentiate into IPCs in vivo and alleviate hyperglycemia in diabetic mice (Figure 3C)[59]. Thus, the identification of optimal cell sources and development of clinical-friendly reprogramming approaches could lead to long-term stable treatment strategy to cure DM.

Small molecules for pancreatic β cell regeneration

Recently, Deng et al. showed that it is possible to artificially induce pluripotency in mouse somatic cells using seven small molecules alone[60]. This transgene free cellular reprogramming strategy is expected to be clinically relevant as small molecules are mostly non immunogenic and their mode of employment is relatively easier than the conventional reprogramming approaches[61]. Several small molecules like the inhibitors of epigenetic enzymes and signalling pathway factors aided the generation of pluripotent stem cells from both mouse and human somatic cells[29]. Some of the small molecules that activate or inhibit certain factors could also promote the differentiation of pluripotent stem cells and even somatic cells into functional β cells. Chen et al. identified through high-content chemical screening that a small molecule called (−)-indolactam V could trigger the differentiation of human ESCs into Pdx1-expressing cells[62]. In a subsequent study, the TGF-β signalling pathway activating small molecules induced endoderm formation from mouse ESCs[63]. This inducer of definitive endoderm (IDE)-1 and its derivative (IDE-2) further enabled the induction of pancreatic progenitors from mouse ESCs when treated along with (−)-indolactam V[63]. The versatile differentiating agent retinoic acid enhanced the generation of homogenous pancreatic PDX1 (+) pancreatic progenitor cells from human ESCs and also promoted further differentiation into β cells[64, 65]. Dadheech et al. recently isolated a small molecule called Swerstin from a perennial herb called Enicostemma littorale and demonstrated its ability to differentiate NIH3T3 cells into islet-like clusters[66]. Furthermore, they showed that normoglycemia could be restored upon the transplantation of these cells in diabetic Balb/c mice. Using high-throughput and cell-based screening studies, Shen et al. identified and characterized a novel small molecule ‘WS6’ having the capability to promote β cell proliferation in the primary islets of both rodent and human[67]. Expression of PDX1 plays an essential role in both β-cell regeneration and maturation. In a very recent study, Yuan et al. used a high-throughput qPCR study to screen 60,000 compounds and identified a small molecule capable of inducing PDX1 expression in the human PANC-1 ductal carcinoma cell line[68]. This novel small molecule called BRD7552 triggered transcriptionally permissive epigenetic changes in the PDX1 promoter region and has shown the capability to induce PDX1 expression in multiple cell lines and primary human cells. Likewise, some known epigenome modifying small molecules have shown the capability to promote β − cell differentiation by inducing key transcription factors. For example, the DNA methyl transferase inhibitor 5-aza-2′-deoxycytidine (5-AZA) triggered transcriptional activation of Ngn3 expression, which in turn promoted endocrine differentiation in the human PANC-1 pancreatic ductal cell line[69] (Table 1).
Table 1

Small molecules and pancreatic β-cell regeneration

Chemical

Target

Source

Reference

Notes

Indolactam V

Pancreas progenitor

Human/mouse definitive endoderm

[62]

PKC activator.

https://static-content.springer.com/image/art%3A10.1186%2F2001-1326-3-6/MediaObjects/40169_2014_Article_50_IEq1_HTML.gif

Induce definitive endoderm (IDE 1 (above) and IDE 2 (below)

Endoderm

Mouse ESCs

[63]

TGF-β activator. Enables induction of pancreatic progenitors from mESCs with Indolactam V

https://static-content.springer.com/image/art%3A10.1186%2F2001-1326-3-6/MediaObjects/40169_2014_Article_50_IEq2_HTML.gif

https://static-content.springer.com/image/art%3A10.1186%2F2001-1326-3-6/MediaObjects/40169_2014_Article_50_IEq3_HTML.gif

Retinoic acid (RA)

Pancreatic cells, β-cells

Definitive endoderm

[64, 65]



https://static-content.springer.com/image/art%3A10.1186%2F2001-1326-3-6/MediaObjects/40169_2014_Article_50_IEq4_HTML.gif

Swertisin

Islet-like cell clusters

Mouse NIH3T3 cells

[66]



https://static-content.springer.com/image/art%3A10.1186%2F2001-1326-3-6/MediaObjects/40169_2014_Article_50_IEq5_HTML.gif

WS6

-

β-cells

[67]

IκB kinase pathway activator (Promotes proliferation of β cells)

https://static-content.springer.com/image/art%3A10.1186%2F2001-1326-3-6/MediaObjects/40169_2014_Article_50_IEq6_HTML.gif

BRD7552

-

Human islets and ductal cells

[68]

PDX1 expression.

https://static-content.springer.com/image/art%3A10.1186%2F2001-1326-3-6/MediaObjects/40169_2014_Article_50_IEq7_HTML.gif

5-aza-2’-deoxycytidine (5-AZA)

Pancreatic endocrine cells

PANC-1 human ductal cell line

[69]

DNA methylation inhibitor.

https://static-content.springer.com/image/art%3A10.1186%2F2001-1326-3-6/MediaObjects/40169_2014_Article_50_IEq8_HTML.gif



Abbreviations, PKC protein kinase C, ESCs embryonic stem cells, TGF-β transforming growth factor β.

Direct differentiation of hepatic stem-like WB cells into insulin-producing cells got achieved using a combination small molecules like selenite, 5-AZA, RA and Trichostatin A (TSA), a regulator of chromatin remodeling and the factors like insulin and transferrin[70] (Figure 4). This study suggests that it is possible to trans-differentiate optimal cell source like hepatocytes into functional β cells. However, lack of selectivity of some chromatin modifying enzymes and requirement of multiple factors is a major concern.
https://static-content.springer.com/image/art%3A10.1186%2F2001-1326-3-6/MediaObjects/40169_2014_Article_50_Fig4_HTML.jpg

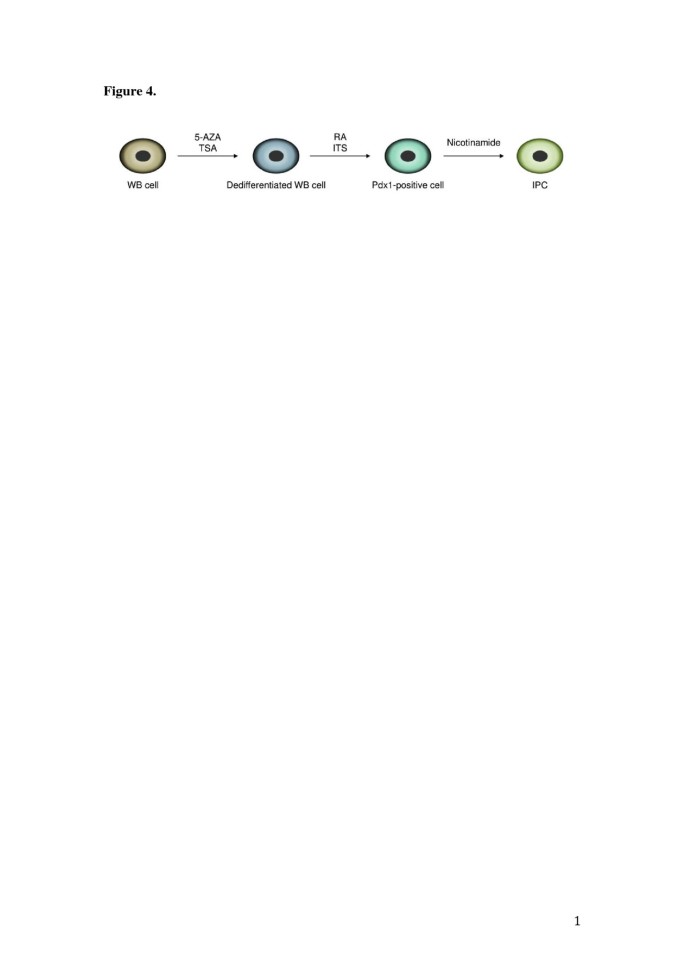

Figure 4

Small molecules and β cell induction. Liver epithelial stem-like white blood (WB) cells can be reprogrammed into insulin-producing cells (IPCs) by sequential protocol using small molecules[68]. In the first stage, WB cells are dedifferentiated with 5-aza-2’-deoxycytidine (5-AZA) and Trichostatin A (TSA). Then, retinoic acid (RA) and a mix of insulin, transferrin and selenite (ITS) are added to induce PDX1-positive pancreatic precursor cells. Nicotinamide promotes maturation of IPCs in the last stage.

Distinct DNA-based epigenetic switches for gene regulatory networks

In recent times, small molecules with versatile properties have shown the capability to induce multiple factors. SAHA-PIP is one such multi-target small molecule having sequence-specific DNA-binding hairpin pyrrole–imidazole polyamides (PIPs) and SAHA, a pan-HDAC inhibitor. Synthesized SAHA-PIPs targeting the promoter region of the tumour suppressor gene p16 triggered sequence-specific acetylation in HeLa cells (Figure 5A)[71]. Screening studies with a distinct set of SAHA-PIPs revealed certain SAHA-PIPs capable of differentially inducing pluripotency genes in mouse embryonic fibroblasts (MEFs) through activation of epigenetic marks associated with transcriptionally permissive chromatin[72, 73].
https://static-content.springer.com/image/art%3A10.1186%2F2001-1326-3-6/MediaObjects/40169_2014_Article_50_Fig5_HTML.jpg

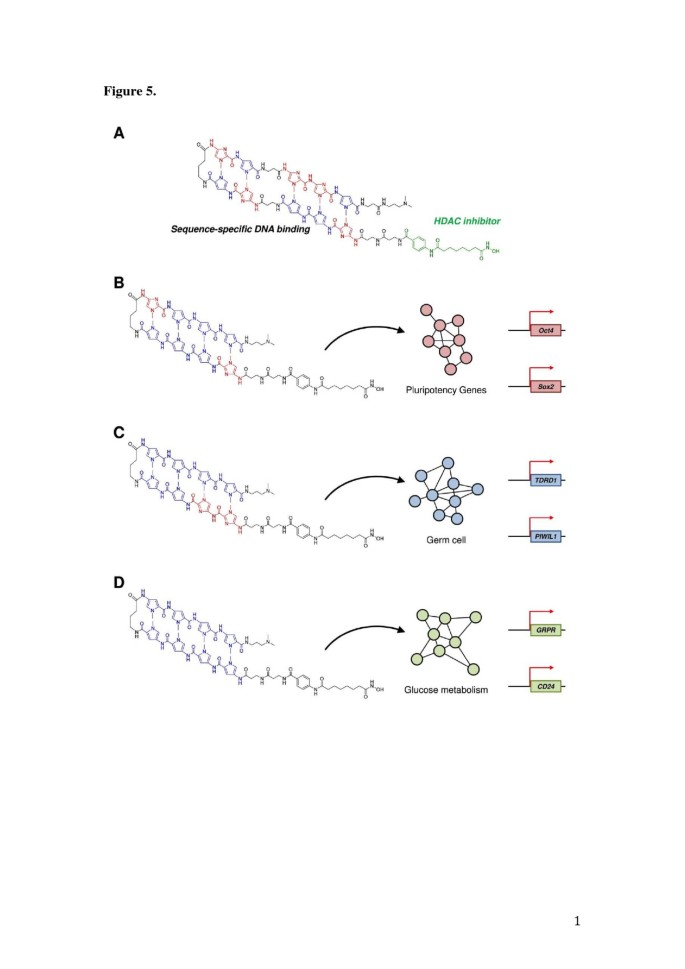

Figure 5

SAHA-PIP: potential tool for selective transcriptional activation. (A) Chemical structure of SAHA-pyrrole-imidazole polyamide (SAHA-PIP) conjugate capable of site-specific acetylation in the promoter region of p16 tumor suppressor gene[71]. (B) SAHA-PIP `δ` triggers the core pluripotency gene network in mouse embryonic fibroblasts through site-specific epigenetic activation. In human dermal fibroblasts[74], (C) SAHA-PIP K and (D) SAHA-PIP A activates gene regulatory network associated with and germ cell and pancreas function such as glucose metabolism, respectively[12, 75].

Subsequent screening studies with a different set of SAHA-PIPs revealed a potent SAHA-PIP called δ capable of inducing multiple pluripotency genes and epithelial cell markers[74]. Since δ-OMe, the non-functional SAHA-PIP and SAHA alone did not activate any pluripotency genes; it is reasonable to assume the role of SAHA and PIP as the functional and DNA recognition module, respectively. A larger number of the δ-induced genes belonged to the intricate core pluripotency gene circuitry that includes 345 genes. Hence, PIP in δ could be directing SAHA to the usually silent core pluripotency gene network for site-specific epigenetic activation (Figure 5B).

Recently, a SAHA-PIP called K got categorized as the first-ever small molecule capable of enforcing transcriptional activation of meiosis-regulating germ cell genes in a human somatic cell[75]. This result substantiates the remarkable ability of SAHA-PIP to activate silent genes because these germ cell specific meiotic markers do not normally occur in a somatic cell. GRPR (gastrin-releasing peptide receptor) is a highly expressed factor in pancreas and assists insulin secretion by stimulating the autonomic nerves (Figure 5C)[76]. CD24 (cluster of differentiation 24) is a cell adhesion molecule and a recent study revealed CD24 as a marker for PDX1-positive pancreatic progenitors derived from human ESCs[77]. CD24-positive cells were shown to differentiate into insulin-producing cells. Recent screening studies with an available set of 32 SAHA-PIPs revealed that a SAHA-PIP called A (also labelled as 1) could activate these two genes in human dermal fibroblasts. Moreover, transcriptome analysis suggested that effect of A is associated with pancreas-related function such as glucose metabolism and diabetes[10] (Figure 5D). Chromatin immune precipitation studies have revealed that SAHA-PIP can induce site-specific chromatin modification to activate the typically ‘silent genes’ in human somatic cells[75]. Because of the tunable potential, SAHA-PIP could be developed as a novel tool to achieve precisely reprogrammed pluripotent stem cell and/or insulin producing β cell. Precisely reprogrammed cells with fewer factors should have better clinical prospects and also could facilitate the achievement of homogenous insulin producing cells, which is a major bottleneck that hampers the clinical translation of artificially reprogrammed cells.

Conclusion and Outlook

In general, diseases are characterized by dysregulation in the transcriptional machinery, which is responsible for the maintenance of the cellular homeostasis[78]. Recently, clinicians have turned their attention to genetic knowledge based therapeutic strategies to treat incurable diseases like DM[30]. Current gene expression profiling techniques helps us in predicting the transcription factors conferring to β cell regeneration[13]. In recent years, an increasing number of genes get classified as the potential therapeutic targets and/or cell-fate determining transcription factors[5, 10]. With the rise of cellular reprogramming strategy, it is now possible to modulate these transcription factors and achieve desired cellular phenotype from a variety of cell sources. The reprogrammed insulin producing cells should be functionally matured for achieving clinically relevant numbers of endocrine cells. Moreover, these cells should also survive long and be engrafted properly inside the host cell environment. To achieve such complex feat, strategies to achieve identical islet-like structures having optimal access to nutrient and oxygen after engraftment in vivo is required.

Optimal cell sources and the reprogramming strategies also complicate the existing difficulties. For example, some of the currently available reprogramming protocols harbor the risk of transgene integration and mutagenesis, which are not clinical friendly[29]. Consequently, transgene free approaches to reprogram cells like employment of RNA, proteins and/or small molecules have been gaining attention. In particular, reprogramming cells with small molecules alone is accepted to have better clinical prospects than the other reprogramming strategies.

Small molecules are also the most preferred drugs among the clinicians and each year they out number the other biological drugs[79]. High-throughput studies revealed several small molecule inhibitors and/or activators that can aid the cellular reprogramming and even the generation of β cells. However, lack of sequence-specificity and the requirement of multiple small molecules necessitate the development of small molecules capable of mimicking the efficacy of their natural counterparts. To achieve the coordinated orchestration of gene expression observed in nature, small molecules should act at both genetic and epigenetic level to regulate the extremely complex gene regulatory networks. A promising way to achieve targeted transcriptional activation is to develop epigenetically active small molecules that could be preprogrammed to bind to specific DNA sequences. One such class of multi-target small molecules having the potential to achieve precise cellular reprogramming is the customizable synthetic SAHA-PIPs capable of modulating distinct biological networks (Figure 5). Synthetic PIPs gain advantages over other natural DNA-binding proteins as effective transcriptional activators because they possess flexible covalent sites and can bind to the methylated DNA sequences and disrupt the packed chromatin structure[8082]. Modification in the structure of SAHA altered the specificity of `δ ` towards a specific HDAC enzyme[83]. Thus, it is possible to attach other epigenetic enzyme inhibitors to trigger variable effects. Ligands that recognize 15–16 base pairs can recognize a single site within the 3 billion base pair human genome[84]. Major regions of the iPS epigenome retain the epigenetic memory of their tissue of origin[85]. Chromatin-modifying enzymes act as both facilitators of and barriers to the epigenetic remodeling of differentiated cells into pluripotent stem cells[86]. Hence, selective chromatin modifiers could modulate the complicated transcriptional network, with less exogenous transcription factors, thus efficiently reprogramming somatic cells. In this context, small molecules, such as SAHA-PIPs, that can induce sequence-specific chromatin modifications may be developed to erase the epigenetic memory and aid the generation of clinical-grade reprogrammed cells[87, 88]. Cellular reprogramming using small molecules alone also has certain limitations. For instance, a certain bioactive small molecule can have variable efficacy against different cell types. Cellular reprogramming with small molecules alone can also trigger genetic instability and the genetic integrity of the reprogrammed cells might get affected[61]. The remarkable ability of pluripotent stem cells to proliferate could also be an issue because the residual undifferentiated cells may cause tumor formation. Therefore, the clinical potential of the reprogrammed cells could be increased with the development of small molecules capable of selectively eliminating human pluripotent cells like PluriSIn#1[89] and/or programmable SAHA-PIPs.

Identification of novel transcription factors and development of strategies for their modulation could lead to effective regeneration of pancreatic β-cells. Importantly, even after transplantation these precisely reprogrammed cells should still retain the capability to produce insulin. The safety requirements associated with any transplantation studies like dosage, genetic stability, possible pathogenicity and toxicity towards host tissue needs to be considered. Nevertheless, recent developments in diabetes research and increasing interest on the intellectual integration of diverse techniques suggest that a permanent cure is not too far.

Declarations

Acknowledgement

This research was supported by the Ministry of Education, Culture, Sports, Science and Technology (MEXT) of Japan, administrated by the Japan Society for the Promotion of Science. World Premier International Research Centre Initiative, MEXT, JAPAN, supports the iCeMS. We thank iCeMS exploratory grant and Grants-in-aid for Young Scientists-B for support to GNP.

Authors’ Affiliations

(1)
Institute for Integrated Cell-Material Sciences (iCeMS), Kyoto University
(2)
Department of Chemistry, Graduate School of Science, Kyoto University

References

  1. Scully T: Diabetes in numbers. Nature 2012, 485: S2-S3. 10.1038/485S2aView ArticlePubMedGoogle Scholar
  2. Ashcroft FM, Rorsman P: Diabetes mellitus and the beta cell: the last ten years. Cell 2012, 148: 1160–1171. 10.1016/j.cell.2012.02.010View ArticlePubMedGoogle Scholar
  3. Bluestone JA, Herold K, Eisenbarth G: Genetics, pathogenesis and clinical interventions in type 1 diabetes. Nature 2012, 464: 1293–1300.View ArticleGoogle Scholar
  4. Gillies CL, Abrams KR, Lambert PC, Cooper NJ, Sutton AJ, Hsu RT, Khunti K: Pharmacological and lifestyle interventions to prevent or delay type 2 diabetes in people with impaired glucose tolerance: systematic review and meta-analysis. BMJ 2007, 334: 299. 10.1136/bmj.39063.689375.55PubMed CentralView ArticlePubMedGoogle Scholar
  5. Li LC, Wang Y, Carr R, Haddad CS, Li Z, Qian L, Oberholzer J, Maker AV, Wang Q, Prabhakar BS: IG20/MADD plays a critical role in glucose-induced insulin secretion. Diabetes 2013. doi: 10.2337/db13–0707 doi: 10.2337/db13-0707Google Scholar
  6. Zhang C, Bao W, Rong Y, Yang H, Bowers K, Yeung E, Kiely M: Genetic variants and the risk of gestational diabetes mellitus: a systematic review. Hum Reprod Update 2013, 19: 376–390. 10.1093/humupd/dmt013PubMed CentralView ArticlePubMedGoogle Scholar
  7. Soejitno A, Prayudi PK: The prospect of induced pluripotent stem cells for diabetes mellitus treatment. Ther Adv Endocrinol Metab 2011, 2: 197–210.PubMed CentralPubMedGoogle Scholar
  8. Takahashi K, Tanabe K, Ohnuki M, Narita M, Ichisaka T, Tomoda K, Yamanaka S: Induction of pluripotent stem cells from adult human fibroblasts by defined factors. Cell 2007, 131: 861–872. 10.1016/j.cell.2007.11.019View ArticlePubMedGoogle Scholar
  9. Islas JF, Liu Y, Weng KC, Robertson MJ, Zhang S, Prejusa A, Harger J, Tikhomirova D, Chopra M, Iyer D, Mercola M, Oshima RG, Willerson JT, Potaman VN, Schwartz RJ: Transcription factors ETS2 and MESP1 transdifferentiate human dermal fibroblasts into cardiac progenitors. Proc Natl Acad Sci USA 2012, 109: 13016–13021. 10.1073/pnas.1120299109PubMed CentralView ArticlePubMedGoogle Scholar
  10. Kogiso T, Nagahara H, Otsuka M, Shiratori K, Dowdy SF: Transdifferentiation of human fibroblasts into hepatocyte-like cells by defined transcriptional factors. Hepatol Int 2013, 7: 937–944. 10.1007/s12072-013-9432-5View ArticlePubMedGoogle Scholar
  11. Wang YH, Wei KY, Smolke CD: Synthetic biology: advancing the design of diverse genetic systems. Annu Rev Chem Biomol Eng. 2013, 4: 69–102. 10.1146/annurev-chembioeng-061312-103351PubMed CentralView ArticlePubMedGoogle Scholar
  12. Pandian GN, Taniguchi J, Junetha S, Sato S, Han L, Saha A, Anandhakumar C, Bando T, Nagase H, Vaijayanthi T, Taylor RD, Sugiyama H: Distinct DNA-based epigenetic switches trigger transcriptional activation of silent genes in human dermal fibroblasts. Sci Rep 2014, 4: e3843.View ArticleGoogle Scholar
  13. Liu X, Wang Y, Li Y, Pei X: Research status and prospect of stem cells in the treatment of diabetes mellitus. Sci China Life Sci 2013, 56: 306–312. 10.1007/s11427-013-4469-1View ArticlePubMedGoogle Scholar
  14. Harrison C: Obesity and diabetes: two-for-one strike at incretins. Nat Rev Drug Discov 2014, 13: 18–19.View ArticlePubMedGoogle Scholar
  15. Rojas LB, Gomes MB: Metformin: an old but still the best treatment for type 2 diabetes. Diabetol Metab Syndr 2013, 5: 6. 10.1186/1758-5996-5-6PubMed CentralView ArticlePubMedGoogle Scholar
  16. Efrat S: Beta-cell replacement for insulin- dependent diabetes mellitus. Adv Drug Deliv Rev 2008, 60: 114–123. 10.1016/j.addr.2007.08.033View ArticlePubMedGoogle Scholar
  17. Gallwitz B: Managing the b-cell with GLP-1 in type 2 diabetes. Br J Diabetes Vasc Dis 2008, 8: S19-S25. 10.1177/1474651408100522View ArticleGoogle Scholar
  18. Yoshida K, Hasebe Y, Takahashi S, Sato K, Anzai J: Layer-by-layer deposited nano- and micro-assemblies for insulin delivery: a review. Mater Sci Eng C Mater Biol Appl 2014, 34: 384–392.View ArticlePubMedGoogle Scholar
  19. Bradley JA: Transplant tolerance by treg therapy. Am J Transplant 2014, 14: 5–6.View ArticlePubMedGoogle Scholar
  20. Smukler SR, Arntfield ME, Razavi R, Bikopoulos G, Karpowicz P, Seaberg R, Dai F, Lee S, Ahrens R, Fraser PE, Wheeler MB, van der Kooy D: The adult mouse and human pancreas contain rare multipotent stem cells that express insulin. Cell Stem Cell 2011, 8: 281–293. 10.1016/j.stem.2011.01.015View ArticlePubMedGoogle Scholar
  21. Lima MJ, Muir KR, Docherty HM, Drummond R, McGowan NWA, Forbes S, Heremans Y, Houbracken I, Ross JA, Forbes SJ, Ravassard P, Heimberg H, Casey J, Docherty K: Suppression of epithelial-to-mesenchymal transitioning enhances ex vivo reprogramming of human exocrine pancreatic tissue toward functional insulin-producing beta-like cells. Diabetes 2013, 62: 2821–2833. 10.2337/db12-1256PubMed CentralView ArticlePubMedGoogle Scholar
  22. Pileggi A: Mesenchymal stem cells for the treatment of diabetes. Diabetes 2012, 61: 1355–1356. 10.2337/db12-0355PubMed CentralView ArticlePubMedGoogle Scholar
  23. Hess D, Li L, Martin M, Sakano S, Hill D, Strutt B, Thyssen S, Gray DA, Bhatia M: Bone marrow-derived stem cells initiate pancreatic regeneration. Nat Biotechnol 2003, 21: 763–770. 10.1038/nbt841View ArticlePubMedGoogle Scholar
  24. Kim SJ, Choi YS, Ko ES, Lim SM, Lee CW, Kim DI: Glucose-stimulated insulin secretion of various mesenchymal stem cells after insulin-producing cell differentiation. J Biosci Bioeng 2012, 113: 771–777. 10.1016/j.jbiosc.2012.02.007View ArticlePubMedGoogle Scholar
  25. Ho JH, Tseng TC, Ma WH, Ong WK, Chen YF, Chen MH, Lin MW, Hong CY, Lee OK: Multiple intravenous transplantations of mesenchymal stem cells effectively restore long-term blood glucose homeostasis by hepatic engraftment and beta-cell differentiation in streptozocin-induced diabetic mice. Cell Transplant 2012, 21: 997–1009. 10.3727/096368911X603611View ArticlePubMedGoogle Scholar
  26. Zaret KS, Grompe M: Generation and regeneration of cells of the liver and pancreas. Science 2008, 322: 1490–1494. 10.1126/science.1161431PubMed CentralView ArticlePubMedGoogle Scholar
  27. Yechoor V, Liu V, Espiritu C, Paul A, Oka K, Kojima H, Chan L: Neurogenin3 is sufficient for transdetermination of hepatic progenitor cells into neo-islets in vivo but not transdifferentiation of hepatocytes. Dev Cell 2009, 16: 358–373. 10.1016/j.devcel.2009.01.012PubMed CentralView ArticlePubMedGoogle Scholar
  28. Brolén GK, Heins N, Edsbagge J, Semb H: Signals from the embryonic mouse pancreas induce differentiation of human embryonic stem cells into insulin-producing beta-cell-like cells. Diabetes 2005, 54: 2867–2874. 10.2337/diabetes.54.10.2867View ArticlePubMedGoogle Scholar
  29. Kroon E, Martinson LA, Kadoya K, Bang AG, Kelly OG, Eliazer S, Young H, Richardson M, Smart NG, Cunningham J, Agulnick AD, D'Amour KA, Carpenter MK, Baetge EE: Pancreatic endoderm derived from human embryonic stem cells generates glucose-responsive insulin-secreting cells in vivo. Nat Biotechnol 2008, 26: 443–452. 10.1038/nbt1393View ArticlePubMedGoogle Scholar
  30. Wu YL, Pandian GN, Ding YP, Zhang W, Tanaka Y, Sugiyama H: Clinical grade iPS Cells: need for versatile small molecules and optimal cell sources. Chem Biol 2013, 20: 1311–1322. 10.1016/j.chembiol.2013.09.016View ArticlePubMedGoogle Scholar
  31. Pandian GN, Sugiyama H: Programmable genetic switches to control transcriptional machinery of pluripotency. Biotechnol J 2012, 7: 798–809. 10.1002/biot.201100361View ArticlePubMedGoogle Scholar
  32. Tateishi K, He J, Taranova O, Liang G, D'Alessio AC, Zhang Y: Generation of insulin-secreting islet-like clusters from human skin fibroblasts. J Biol Chem 2008, 283: 31601–31607. 10.1074/jbc.M806597200View ArticlePubMedGoogle Scholar
  33. Maehr R, Chen S, Snitow M, Ludwig T, Yagasaki L, Goland R, Leibel RL, Melton DA: Generation of pluripotent stem cells from patients with type 1 diabetes. Proc Natl Acad Sci USA 2009, 106: 15768–15773. 10.1073/pnas.0906894106PubMed CentralView ArticlePubMedGoogle Scholar
  34. Zhang D, Jiang W, Liu M, Sui X, Yin X, Chen S, Shi Y, Deng H: Highly efficient differentiation of human ES cells and iPS cells into mature pancreatic insulin-producing cells. Cell Res 2009, 19: 429–438. 10.1038/cr.2009.28View ArticlePubMedGoogle Scholar
  35. Alipio Z, Liao W, Roemer EJ, Waner M, Fink LM, Ward DC, Ma Y: Reversal of hyperglycemia in diabetic mouse models using induced-pluripotent stem (iPS)-derived pancreatic beta-like cells. Proc Natl Acad Sci USA 2010, 107: 13426–13431. 10.1073/pnas.1007884107PubMed CentralView ArticlePubMedGoogle Scholar
  36. Sui L, Mfopou JK, Chen B, Sermon K, Bouwens L: Transplantation of human embryonic stem cell-derived pancreatic endoderm reveals a site-specific survival, growth and differentiation. Cell Transplant 2013, 22: 821–830. 10.3727/096368912X636812View ArticlePubMedGoogle Scholar
  37. De Angelis MT, Russo F, D'Angelo F, Federico A, Gemei M, Del Vecchio L, Ceccarelli M, De Felice M, Falco G: Novel pancreas organogenesis markers refine the pancreatic differentiation roadmap of embryonic stem cells. Stem Cell Rev 2014. 10.1007/s12015–013–9489–5 10.1007/s12015-013-9489-5Google Scholar
  38. Cano DA, Soria B, Martin F, Rojas A: Transcriptional control of mammalian pancreas organogenesis. Cell Mol Life Sci 2013. doi:10.1007/s00018–013–1510–2. doi:10.1007/s00018-013-1510-2.Google Scholar
  39. Maurano MT, Humbert R, Rynes E, Thurman RE, Haugen E, Wang H, Reynolds AP, Sandstrom R, Qu H, Brody J, Shafer A, Neri F, Lee K, Kutyavin T, Stehling-Sun S, Johnson AK, Canfield TK, Giste E, Diegel M, Bates D, Hansen RS, Neph S, Sabo PJ, Heimfeld S, Raubitschek A, Ziegler S, Cotsapas C, Sotoodehnia N, Glass I, Sunyaev SR, et al.: Systematic localization of common disease-associated variation in regulatory DNA. Science 2012, 337: 1190–1195. 10.1126/science.1222794PubMed CentralView ArticlePubMedGoogle Scholar
  40. McKinnon CM, Docherty K: Pancreatic duodenal homeobox-1, PDX-1, a major regulator of beta cell identity and function. Diabetologia 2001, 44: 1203–1214. 10.1007/s001250100628View ArticlePubMedGoogle Scholar
  41. Masui T, Swift GH, Hale MA, Meredith DM, Johnson JE, Macdonald RJ: Transcriptional autoregulation controls pancreatic Ptf1a expression during development and adulthood. Mol Cell Biol 2008, 28: 5458–5468. 10.1128/MCB.00549-08PubMed CentralView ArticlePubMedGoogle Scholar
  42. Xuan S, Borok MJ, Decker KJ, Battle MA, Duncan SA, Hale MA, Macdonald RJ, Sussel L: Pancreas-specific deletion of mouse Gata4 and Gata6 causes pancreatic agenesis. J Clin Investig 2012, 122: 3516–3528. 10.1172/JCI63352PubMed CentralView ArticlePubMedGoogle Scholar
  43. Gao N, LeLay J, Vatamaniuk MZ, Rieck S, Friedman JR, Kaestner KH: Dynamic regulation of Pdx1 enhancers by Foxa1 and Foxa2 is essential for pancreas development. Genes Dev 2008, 22: 3435–3448. 10.1101/gad.1752608PubMed CentralView ArticlePubMedGoogle Scholar
  44. Poll AV, Pierreux CE, Lokmane L, Haumaitre C, Achouri Y, Jacquemin P, Rousseau GG, Cereghini S, Lemaigre FP: A vHNF1/TCF2-HNF6 cascade regulates the transcription factor network that controls generation of pancreatic precursor cells. Diabetes 2006, 55: 61–69. 10.2337/diabetes.55.01.06.db05-0681View ArticlePubMedGoogle Scholar
  45. Lynn FC, Smith SB, Wilson ME, Yang KY, Nekrep N, German MS: Sox9 coordinates a transcriptional network in pancreatic progenitor cells. Proc Natl Acad Sci USA 2007, 104: 10500–10505. 10.1073/pnas.0704054104PubMed CentralView ArticlePubMedGoogle Scholar
  46. Sander M, Sussel L, Conners J, Scheel D, Kalamaras J, Dela Cruz F, Schwitzgebel V, Hayes-Jordan A, German M: Homeobox gene Nkx6.1 lies downstream of Nkx2.2 in the major pathway of beta-cell formation in the pancreas. Development 2000, 127: 5533–5540.PubMedGoogle Scholar
  47. Ahlgren U, Pfaff SL, Jessell TM, Edlund T, Edlund H: Independent requirement for ISL1 in formation of pancreatic mesenchyme and islet cells. Nature 1997, 385: 257–260. 10.1038/385257a0View ArticlePubMedGoogle Scholar
  48. Itkin-Ansari P, Marcora E, Geron I, Tyrberg B, Demeterco C, Hao E, Padilla C, Ratineau C, Leiter A, Lee JE, Levine F: NeuroD1 in the endocrine pancreas: localization and dual function as an activator and repressor. Dev Dyn 2005, 233: 946–953. 10.1002/dvdy.20443View ArticlePubMedGoogle Scholar
  49. Cerf ME, Muller CJ, Du Toit DF, Louw J, Wolfe-Coote SA: Transcription factors, pancreatic development, and beta-cell maintenance. Biochem Biophys Res Commun 2005, 326: 699–702. 10.1016/j.bbrc.2004.10.217View ArticlePubMedGoogle Scholar
  50. Gradwohl G, Dierich A, LeMeur M, Guillemot F: Neurogenin3 is required for the development of the four endocrine cell lineages of the pancreas. Proc Natl Acad Sci USA 2000, 97: 1607–1611. 10.1073/pnas.97.4.1607PubMed CentralView ArticlePubMedGoogle Scholar
  51. Smith SB, Qu HQ, Taleb N, Kishimoto NY, Scheel DW, Lu Y, Patch AM, Grabs R, Wang J, Lynn FC, Miyatsuka T, Mitchell J, Seerke R, Désir J, Vanden Eijnden S, Abramowicz M, Kacet N, Weill J, Renard ME, Gentile M, Hansen I, Dewar K, Hattersley AT, Wang R, Wilson ME, Johnson JD, Polychronakos C, German MS: Rfx6 directs islet formation and insulin production in mice and humans. Nature 2010, 463: 775–780. 10.1038/nature08748PubMed CentralView ArticlePubMedGoogle Scholar
  52. Nishimura W, Kondo T, Salameh T, El Khattabi I, Dodge R, Bonner-Weir S, Sharma A: A switch from MafB to MafA expression accompanies differentiation to pancreatic beta-cells. Dev Biol 2006, 293: 526–539. 10.1016/j.ydbio.2006.02.028PubMed CentralView ArticlePubMedGoogle Scholar
  53. Ferber S, Halkin A, Cohen H, Ber I, Einav Y, Goldberg I, Barshack I, Seijffers R, Kopolovic J, Kaiser N, Karasik A: Pancreatic and duodenal homeobox gene 1 induces expression of insulin genes in liver and ameliorates streptozotocin-induced hyperglycemia. Nat Med 2000, 6: 568–572. 10.1038/75050View ArticlePubMedGoogle Scholar
  54. Kaneto H, Nakatani Y, Miyatsuka T, Matsuoka TA, Matsuhisa M, Hori M, Yamasaki Y: PDX-1/VP16 fusion protein, together with NeuroD or Ngn3, markedly induces insulin gene transcription and ameliorates glucose tolerance. Diabetes 2005, 54: 1009–1022. 10.2337/diabetes.54.4.1009View ArticlePubMedGoogle Scholar
  55. Sapir T, Shternhall K, Meivar-Levy I, Blumenfeld T, Cohen H, Skutelsky E, Eventov-Friedman S, Barshack I, Goldberg I, Pri-Chen S, Ben-Dor L, Polak-Charcon S, Karasik A, Shimon I, Mor E, Ferber S: Cell-replacement therapy for diabetes: generating functional insulin-producing tissue from adult human liver cells. Proc Natl Acad Sci USA 2005, 102: 7964–7969. 10.1073/pnas.0405277102PubMed CentralView ArticlePubMedGoogle Scholar
  56. Wang AY, Ehrhardt A, Xu H, Kay MA: Adenovirus transduction is required for the correction of diabetes using Pdx-1 or Neurogenin-3 in the liver. Mol Ther 2007, 15: 255–263. 10.1038/sj.mt.6300032View ArticlePubMedGoogle Scholar
  57. Zhou Q, Brown J, Kanarek A, Rajagopal J, Melton DA: In vivo reprogramming of adult pancreatic exocrine cells to beta-cells. Nature 2008, 455: 627–632. 10.1038/nature07314View ArticlePubMedGoogle Scholar
  58. Collombat P, Xu X, Ravassard P, Sosa-Pineda B, Dussaud S, Billestrup N, Madsen OD, Serup P, Heimberg H, Mansouri A: The ectopic expression of Pax4 in the mouse pancreas converts progenitor cells into alpha and subsequently beta cells. Cell 2009, 138: 449–462. 10.1016/j.cell.2009.05.035PubMed CentralView ArticlePubMedGoogle Scholar
  59. Kajiyama H, Hamazaki TS, Tokuhara M, Masui S, Okabayashi K, Ohnuma K, Yabe S, Yasuda K, Ishiura S, Okochi H, Asashima M: Pdx1-transfected adipose tissue-derived stem cells differentiate into insulin-producing cells in vivo and reduce hyperglycemia in diabetic mice. Int J Dev Biol 2010, 54: 699–705. 10.1387/ijdb.092953hkView ArticlePubMedGoogle Scholar
  60. Hou P, Li Y, Zhang X, Liu C, Guan J, Li H, Zhao T, Ye J, Yang W, Liu K, Ge J, Xu J, Zhang Q, Zhao Y, Deng H: Pluripotent stem cells induced from mouse somatic cells by small-molecule compounds. Science 2013, 341: 651–654. 10.1126/science.1239278View ArticlePubMedGoogle Scholar
  61. Masuda S, Wu J, Hishida T, Pandian GN, Sugiyama H, Izpisua Belmonte JC: Chemically induced pluripotent stem cells (CiPSCs): a transgene-free approach. J Mol Cell Biol 2013, 5: 354–355. 10.1093/jmcb/mjt034View ArticlePubMedGoogle Scholar
  62. Chen S, Borowiak M, Fox JL, Maehr R, Osafune K, Davidow L, Lam K, Peng LF, Schreiber SL, Rubin LL, Melton D: A small molecule that directs differentiation of human ESCs into the pancreatic lineage. Nat Chem Biol 2009, 5: 258–265. 10.1038/nchembio.154View ArticlePubMedGoogle Scholar
  63. Borowiak M, Maehr R, Chen S, Chen AE, Tang W, Fox JL, Schreiber SL, Melton DA: Small molecules efficiently direct endodermal differentiation of mouse and human embryonic stem cells. Cell Stem Cell 2009, 4: 348–358. 10.1016/j.stem.2009.01.014PubMed CentralView ArticlePubMedGoogle Scholar
  64. Cai J, Yu C, Liu Y, Chen S, Guo Y, Yong J, Lu W, Ding M, Deng H: Generation of homogeneous PDX1(+) pancreatic progenitors from human ES cell-derived endoderm cells. J Mol Cell Biol 2010, 2: 50–60. 10.1093/jmcb/mjp037View ArticlePubMedGoogle Scholar
  65. Oström M, Loffler KA, Edfalk S, Selander L, Dahl U, Ricordi C, Jeon J, Correa-Medina M, Diez J, Edlund H: Retinoic acid promotes the generation of pancreatic endocrine progenitor cells and their further differentiation into beta-cells. PLoS One 2008, 3: 2841. 10.1371/journal.pone.0002841View ArticleGoogle Scholar
  66. Dadheech N, Soni S, Srivastava A, Dadheech S, Gupta S, Gopurappilly R, Bhonde RR, Gupta S: A small molecule Swertisin from Enicostemma littorale differentiates NIH3T3 cells into islet-like clusters and restores Normoglycemia upon transplantation in diabetic balb/c mice. Evid Based Complement Alternat Med 2013, 2013: 280392.PubMed CentralPubMedGoogle Scholar
  67. Shen W, Tremblay MS, Deshmukh VA, Wang W, Filippi CM, Harb G, Zhang YQ, Kamireddy A, Baaten JE, Jin Q, Wu T, Swoboda JG, Cho CY, Li J, Laffitte BA, McNamara P, Glynne R, Wu X, Herman AE, Schultz PG: Small-molecule inducer of β cell proliferation identified by high-throughput screening. J Am Chem Soc 2013, 135: 1669–1672. 10.1021/ja309304mView ArticlePubMedGoogle Scholar
  68. Yuan Y, Hartland K, Boskovic Z, Wang Y, Walpita D, Lysy PA, Zhong C, Young DW, Kim YK, Tolliday NJ, Sokal EM, Schreiber SL, Wagner BK: A small-molecule inducer of PDX1 expression identified by high-throughput screening. Chem Biol 2013, 20: 1513–1522. 10.1016/j.chembiol.2013.10.013PubMed CentralView ArticlePubMedGoogle Scholar
  69. Lefebvre B, Belaich S, Longue J, Vandewalle B, Oberholzer J, Gmyr V, Pattou F, Kerr-Conte J: 5'-AZA induces Ngn3 expression and endocrine differentiation in the PANC-1 human ductal cell line. Biochem Biophys Res Commun 2010, 391: 305–309. 10.1016/j.bbrc.2009.11.054View ArticlePubMedGoogle Scholar
  70. Liu J, Liu Y, Wang H, Hao H, Han Q, Shen J, Shi J, Li C, Mu Y, Han W: Direct differentiation of hepatic stem-like WB cells into insulin-producing cells using small molecules. Sci Rep 2013, 3: 1185.PubMed CentralPubMedGoogle Scholar
  71. Ohtsuki A, Kimura M, Minoshima M, Suzuki T, Ikeda M, Bando T, Nagase H, Shinohara K, Sugiyama H: Synthesis and properties of PI polyamide–SAHA conjugate. Tetrahedron Lett 2009, 50: 7288–7292. 10.1016/j.tetlet.2009.10.034View ArticleGoogle Scholar
  72. Pandian GN, Shinohara K, Ohtsuki A, Nakano Y, Masafumi M, Bando T, Nagase H, Yamada Y, Watanabe A, Terada N, Sato S, Morinaga H, Sugiyama H: Synthetic small molecules for epigenetic activation of pluripotency genes in mouse embryonic fibroblasts. ChemBioChem 2011, 12: 2822–2828. 10.1002/cbic.201100597View ArticlePubMedGoogle Scholar
  73. Pandian GN, Ohtsuki A, Bando T, Sato S, Hashiya K, Sugiyama H: Development of programmable small DNA-binding molecules with epigenetic activity for induction of core pluripotency genes. Bioorg Med Chem 2012, 20: 2656–2660. 10.1016/j.bmc.2012.02.032View ArticlePubMedGoogle Scholar
  74. Pandian GN, Nakano Y, Sato S, Morinaga H, Bando T, Nagase H, Sugiyama H: A synthetic small molecule for rapid induction of multiple pluripotency genes in mouse embryonic fibroblasts. Sci Rep 2012, 2: 544.PubMed CentralView ArticlePubMedGoogle Scholar
  75. Han L, Pandian GN, Junetha S, Sato S, Anandhakumar C, Taniguchi J, Saha A, Bando T, Nagase H, Sugiyama H: A synthetic small molecule for targeted transcriptional activation of germ cell genes in a human somatic cell. Angew Chem Int Ed Engl 2013, 52: 13410–13413. 10.1002/anie.201306766View ArticlePubMedGoogle Scholar
  76. Persson K, Pacini G, Sundler F, Ahrén B: Islet function phenotype in gastrin-releasing peptide receptor gene-deficient mice. Endocrinology 2002, 143: 3717–3726. 10.1210/en.2002-220371View ArticlePubMedGoogle Scholar
  77. Jiang W, Sui X, Zhang D, Liu M, Ding M, Shi Y, Deng H: CD24: a novel surface marker for PDX1-positive pancreatic progenitors derived from human embryonic stem cells. Stem Cells 2011, 29: 609–617. 10.1002/stem.608View ArticlePubMedGoogle Scholar
  78. Thandavarayan RA, Giridharan VV, Sari FR, Arumugam S, Veeraveedu PT, Pandian GN, Palaniyandi SS, Ma M, Suzuki K, Gurusamy N, Watanabe K: Depletion of 14–3-3 protein exacerbates cardiac oxidative stress, inflammation and remodeling process via modulation of MAPK/NF-ĸB signaling pathways after streptozotocin-induced diabetes mellitus. Cell Physiol Biochem 2011, 28: 911–922. 10.1159/000335805View ArticlePubMedGoogle Scholar
  79. Hopkins AL, Groom CR: The druggable genome. Nat Rev Drug Discov 2002, 1: 727–730. 10.1038/nrd892View ArticlePubMedGoogle Scholar
  80. Vaijayanthi T, Bando T, Hashiya K, Pandian GN, Sugiyama H: Design of a new fluorescent probe: pyrrole/imidazole hairpin polyamides with pyrene conjugation at their γ-turn. Bioorg Med Chem 2013, 21: 852–855. 10.1016/j.bmc.2012.12.018View ArticlePubMedGoogle Scholar
  81. Vaijayanthi T, Bando T, Pandian GN, Sugiyama H: Progress and prospects of pyrrole-imidazole polyamide-fluorophore conjugates as sequence-selective DNA probes. Chembiochem 2012, 13: 2170–2185. 10.1002/cbic.201200451View ArticlePubMedGoogle Scholar
  82. Kashiwazaki G, Bando T, Yoshidome T, Masui S, Takagaki T, Hashiya K, Pandian GN, Yasuoka J, Akiyoshi K, Sugiyama H: Synthesis and biological properties of highly sequence-specific-alkylating N-methylpyrrole–N-methylimidazole polyamide conjugates. J Med Chem 2057–2066, 2012: 55.Google Scholar
  83. Saha A, Pandian GN, Sato S, Taniguchi J, Hashiya K, Bando T, Sugiyama H: Synthesis and biological evaluation of a targeted DNA-binding transcriptional activator with HDAC8 inhibitory activity. Bioorg Med Chem 2013, 21: 4201–4209. 10.1016/j.bmc.2013.05.002View ArticlePubMedGoogle Scholar
  84. Trauger JW, Baird EE, Dervan PB: Recognition of 16 base pairs in the minor groove of DNA by a pyrrole-imidazole polyamide dimer. J Am Chem Soc 1998, 120: 3534–3535. 10.1021/ja9800378View ArticleGoogle Scholar
  85. Kim K, Doi A, Wen B, Ng K, Zhao R, Cahan P, Kim J, Aryee MJ, Ji H, Ehrlich LI, Yabuuchi A, Takeuchi A, Cunniff KC, Hongguang H, McKinney-Freeman S, Naveiras O, Yoon TJ, Irizarry RA, Jung N, Seita J, Hanna J, Murakami P, Jaenisch R, Weissleder R, Orkin SH, Weissman IL, Feinberg AP, Daley GQ: Epigenetic memory in induced pluripotent stem cells. Nature 2010, 467: 285–290. 10.1038/nature09342PubMed CentralView ArticlePubMedGoogle Scholar
  86. Onder TT, Kara N, Cherry A, Sinha AU, Zhu N, Bernt KM, Cahan P, Marcarci BO, Unternaehrer J, Gupta PB, Lander ES, Armstrong SA, Daley GQ: Chromatin-modifying enzymes as modulators of reprogramming. Nature 2012, 483: 598–602. 10.1038/nature10953PubMed CentralView ArticlePubMedGoogle Scholar
  87. Fisher AG, Merkenschlager M: Fresh powder on Waddington's slopes. EMBO Rep 2010, 11: 490–492. 10.1038/embor.2010.95PubMed CentralView ArticlePubMedGoogle Scholar
  88. Pandian GN, Sugiyama H: Strategies to modulate heritable epigenetic defects in cellular machinery: lessons from nature. Pharmaceuticals 2012, 6: 1–24. 10.3390/ph6010001PubMed CentralView ArticlePubMedGoogle Scholar
  89. Ben-David U, Gan QF, Golan-Lev T, Arora P, Yanuka O, Oren YS, Leikin-Frenkel A, Graf M, Garippa R, Boehringer M, Gromo G, Benvenisty N: Selective elimination of human pluripotent stem cells by an oleate synthesis inhibitor discovered in a high-throughput screen. Cell Stem Cell 2013, 12: 167–179. 10.1016/j.stem.2012.11.015View ArticlePubMedGoogle Scholar

Copyright

© Pandian et al.; licensee Springer. 2014

This article is published under license to BioMed Central Ltd. This is an Open Access article distributed under the terms of the Creative Commons Attribution License (http://creativecommons.org/licenses/by/4.0), which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly credited.
